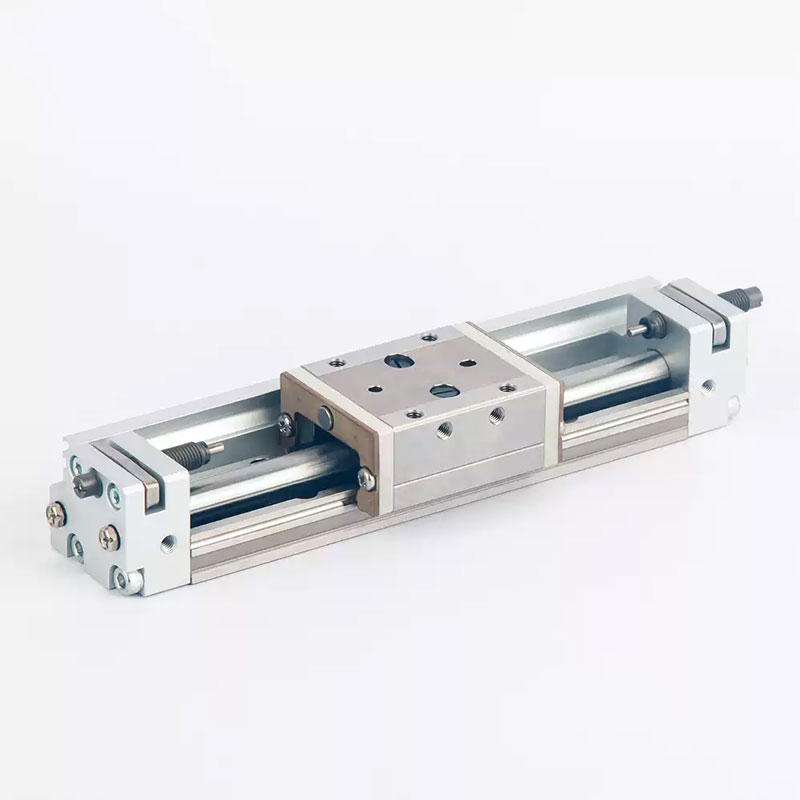

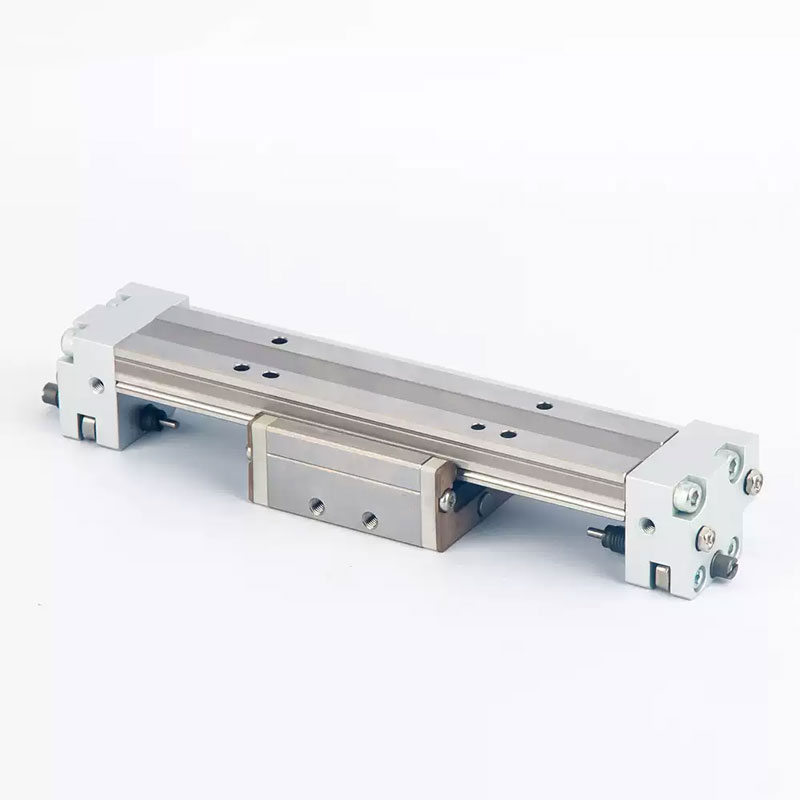

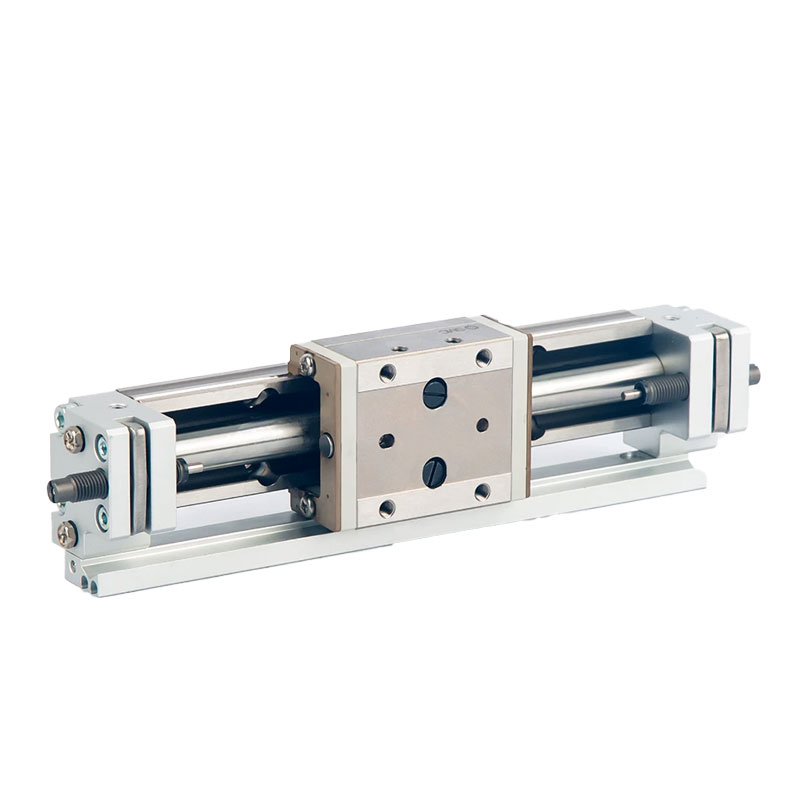

MXY Magnetically Coupled Linear Guide Cylinder
- MXY slide table
- MXY long stroke pneumatic cylinder
- magnetically coupled rodless slide
- SMC linear guide slide table
- high rigidity long stroke cylinder
- MXY precision air slide
- rodless pneumatic slide table
- SMC MXY pneumatic actuator
- long stroke positioning cylinder
- compact long slide cylinder
The SMC TYPE MXY Series is a long-stroke, high-precision pneumatic slide table engineered as the extended-stroke variant of the MXP series. It integrates a magnetically coupled rodless cylinder with a high-rigidity linear guide, delivering exceptional stability, constant rigidity, and smooth linear motion across the full stroke length.
Long Stroke Capability: Max stroke up to 400mm, ideal for extended travel applications.
Bore Sizes: 6, 8, 12 mm.
Magnetically Coupled Rodless Design: Compact, lightweight profile with no protruding piston rod.
High-Rigidity Linear Guide: Hardened stainless-steel rails ensure consistent load rigidity and zero deflection throughout the entire stroke.
Double Acting: Standard double-acting operation for precise control.
Operating Pressure: 0.2~0.55 MPa.
Piston Speed: 50~400 mm/s.
Cushion Options: Rubber bumpers (standard); shock absorbers (optional, for MXY8/12).
Auto-Switch Compatible: Supports SMC D-M9 series auto-switches for precise position sensing.
Flexible Mounting & Piping: Centralized piping ports, versatile mounting from multiple faces.
Non-lubrication: Maintenance-free operation (no lubrication required).
RoHS Compliant: Meets global environmental standards.
