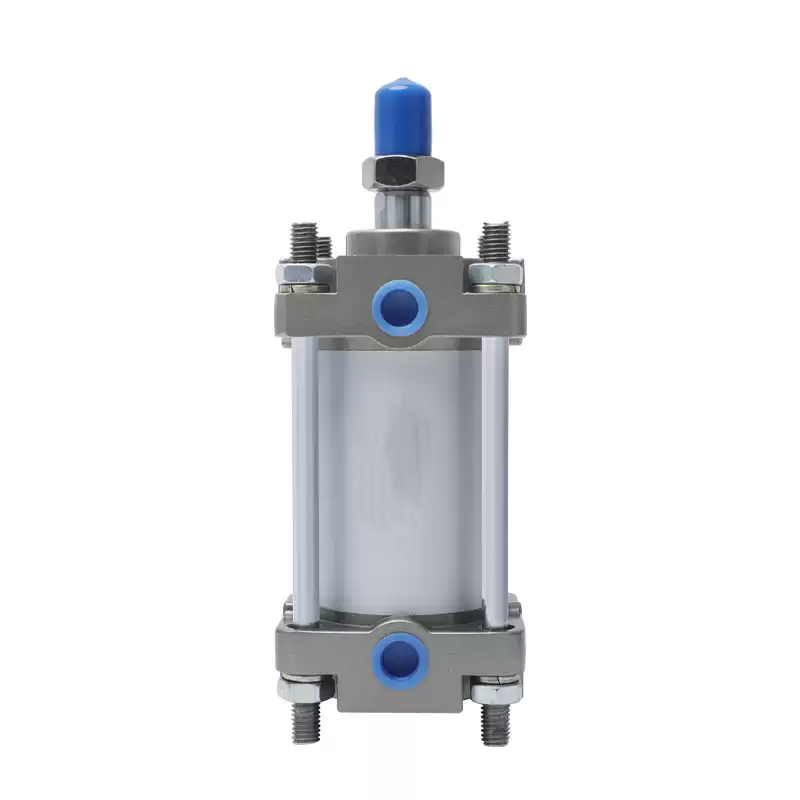

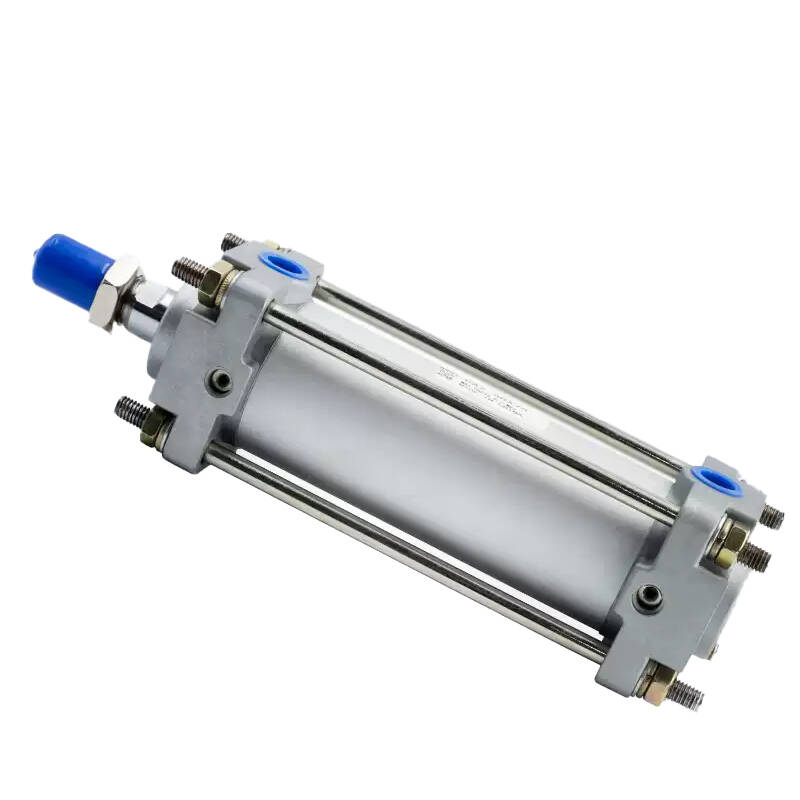

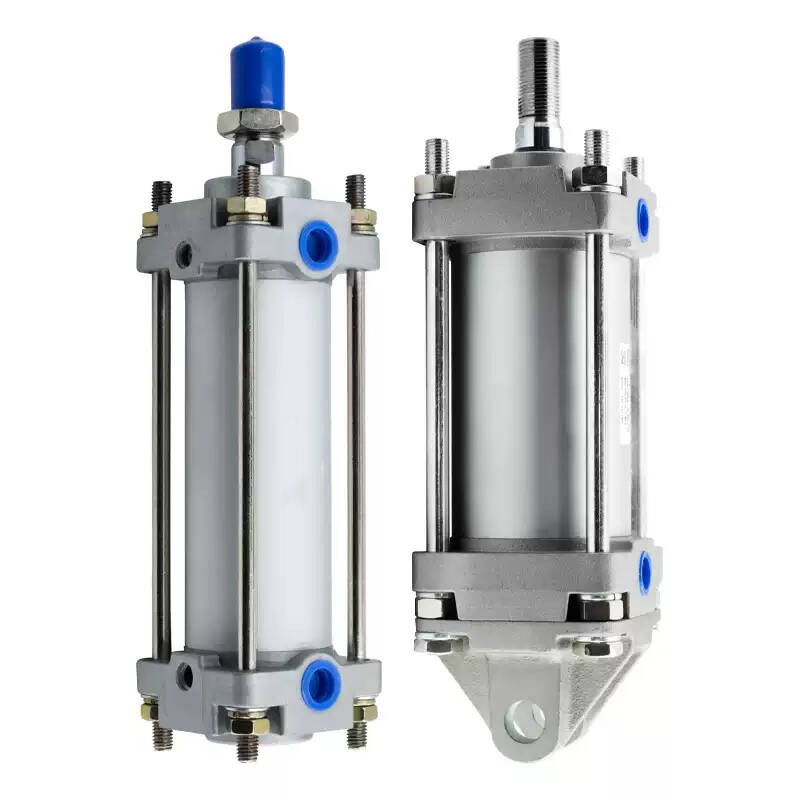

CA2 Series Heavy Duty Tie-Rod Standard Cylinder
- High-quality SMC-type CA2 standard cylinder
- Double-acting pneumatic performance
- Robust tie-rod design for maximum stability
- Adjustable pneumatic cushioning for impact reduction
- Lightweight aluminum alloy barrel with high durability
- Precision hard-chromed piston rod
- Multiple bore sizes (40mm, 50mm, 63mm, 80mm, 100mm)
- High-speed response and low starting pressure
- Compatible with various ISO standard mounting accessories
- Ideal for high-frequency industrial automation.
CA2 Series Standard Cylinder: High-Performance SMC-Type Actuator
The CA2 series is a heavy-duty, double-acting pneumatic cylinder designed as a high-performance alternative to the SMC standard. Known for its robust tie-rod construction and smooth linear motion, the CA2 series is the preferred choice for industrial applications requiring stability and precision.
Advanced Engineering Highlights
SMC Standard Interchangeability: Designed to exact SMC type CA2 dimensions, ensuring seamless replacement in existing systems without modifying mounting brackets or piping.
Superior Air Cushioning: Integrated with high-efficiency adjustable air cushions at both ends. This eliminates metal-to-metal impact, significantly reducing noise and mechanical wear.
Lightweight & Durable Construction: The cylinder barrel is crafted from high-grade aluminum alloy, offering a perfect balance between lightweight handling and heavy-duty durability.
Optimized Piston Rod: Features a hard-chromed carbon steel piston rod (stainless steel available upon request) with high-tensile strength and excellent corrosion resistance.
Technical Specifications
Primary Applications
The CA2 series is widely utilized in large-scale automation projects, including:
Heavy Machinery: Lifting, pressing, and material shifting.
Automotive Production: Welding jigs and assembly line clamping.
Construction & Mining: Robust actuation for harsh environments.
General Automation: Reliable performance for high-load packaging and sorting.
