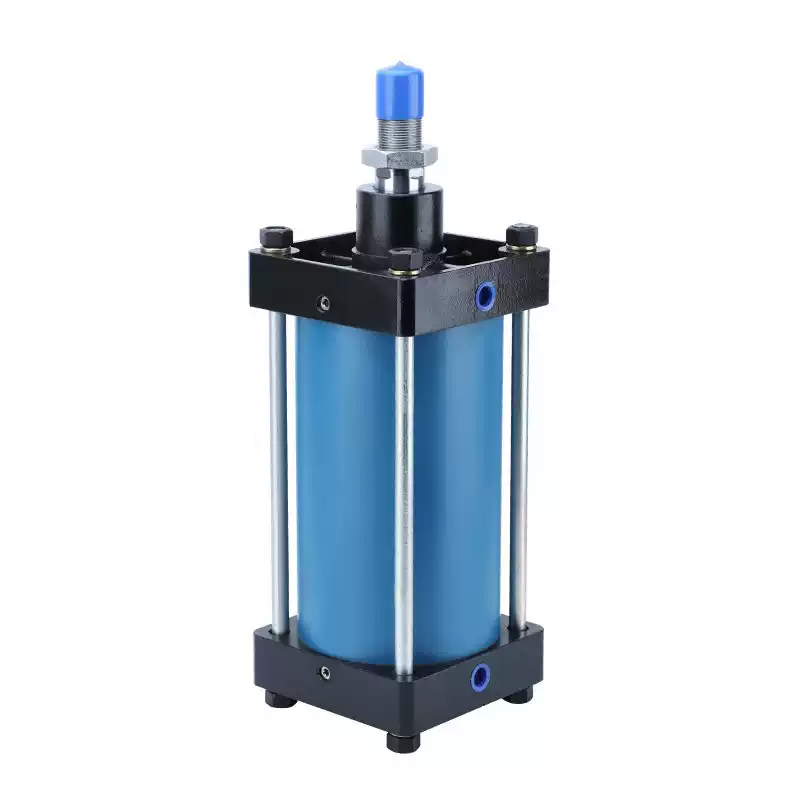

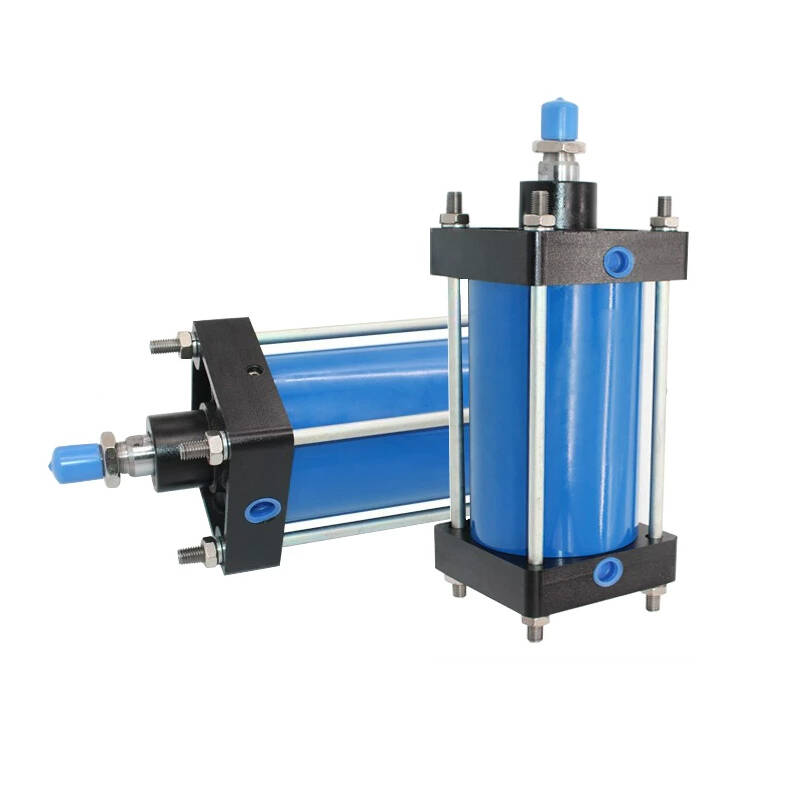

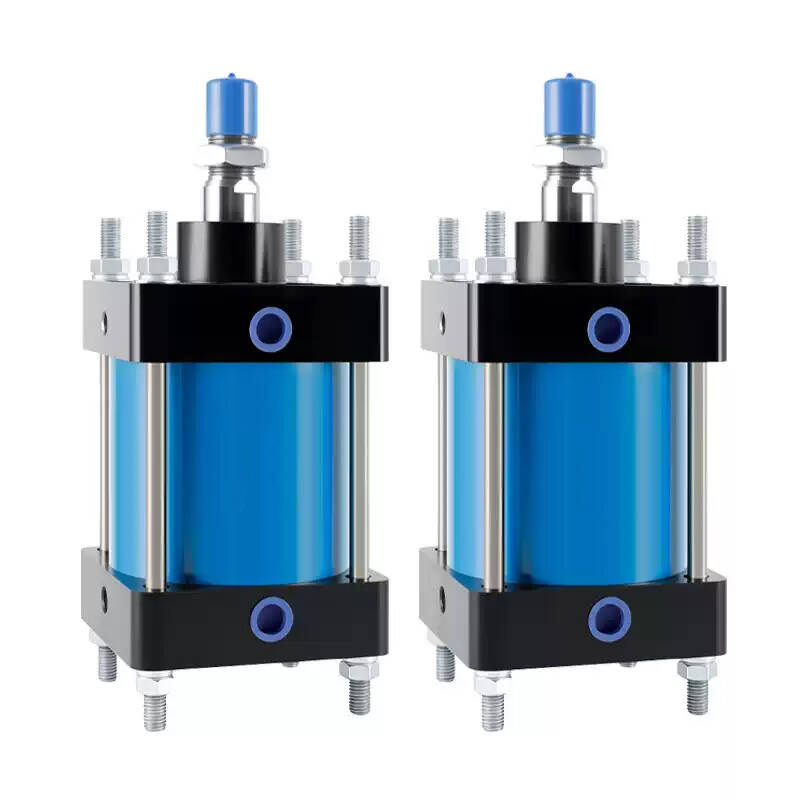

QGB Series Large Bore Standard Pneumatic Cylinder
- Heavy-duty QGB series standard pneumatic cylinder
- Classic high-stability tie-rod construction
- Double-acting linear motion performance
- Precise adjustable air cushioning for impact protection
- Durable anodized aluminum alloy barrel
- Hard-chromed piston rod for corrosion resistance
- Extensive bore range (32mm to 320mm)
- Customizable strokes up to 2000mm
- Multiple mounting options (LB, FA, FB, CA, CB, TC)
- High-temperature and heavy-load capable
- Global industrial standard compatibility.
QGB Series: The Industrial Standard for Heavy-Duty Tie-Rod Cylinders
The QGB series is a robust and versatile standard pneumatic cylinder, widely recognized for its reliability in demanding industrial environments. Utilizing a traditional tie-rod construction, the QGB series offers exceptional structural stability and ease of maintenance, making it the "go-to" actuator for heavy-duty automation and machinery.
Advanced Engineering & Performance Features
Precision Adjustable Cushioning: Every QGB cylinder is equipped with high-efficiency adjustable air cushions at both ends. This ensures smooth deceleration, minimizes impact vibration, and significantly extends the life of the cylinder and the attached equipment.
High-Strength Tie-Rod Design: The external tie-rods are made of high-tensile steel, providing maximum rigidity to handle high-pressure surges and heavy mechanical loads without deformation.
Premium Material Selection:
Cylinder Barrel: High-precision anodized aluminum alloy (or honed steel for larger bores) for low friction and wear resistance.
Piston Rod: Hard-chromed carbon steel (Standard) or Stainless Steel (Optional) with a high-polish finish for superior seal life.
Seals: Durable NBR or Viton seals designed for high-frequency operation and long-term reliability.
Non-Lubricated Operation: Features self-lubricating bearings that eliminate the need for oil mist lubrication, ensuring a cleaner and lower-maintenance pneumatic system.
Technical Specifications (Bore & Stroke)
Primary Industrial Applications
The QGB series is the preferred actuator for heavy-duty sectors:
Steel & Metallurgy: High-force clamping and material shifting.
Mining & Construction Machinery: Reliable operation in harsh, dusty environments.
Automotive Assembly Lines: Large-scale jig positioning and pressing.
General Manufacturing: Powering large presses, conveyors, and lifting platforms.
