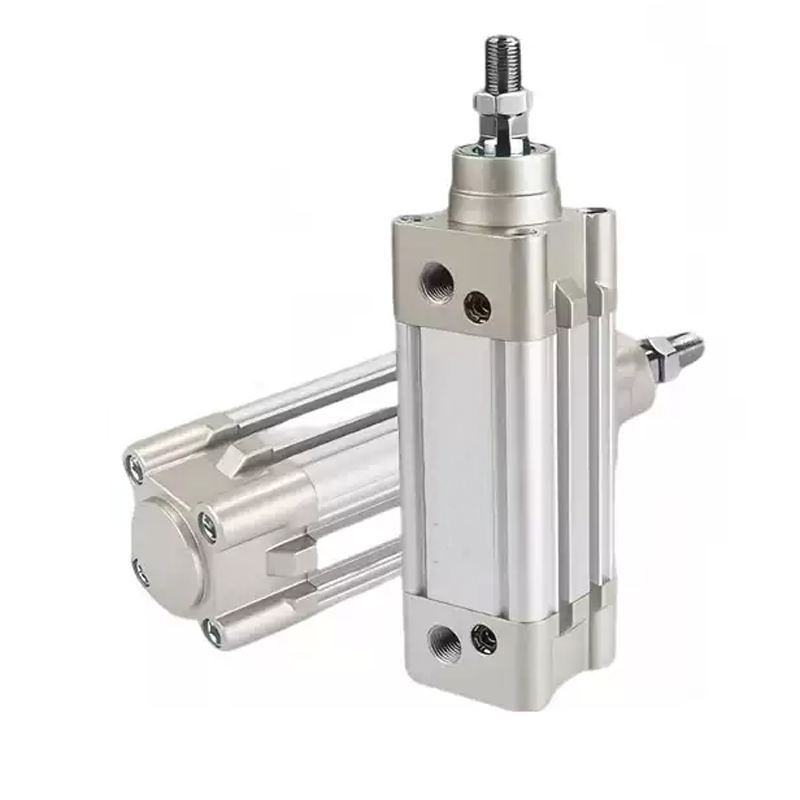

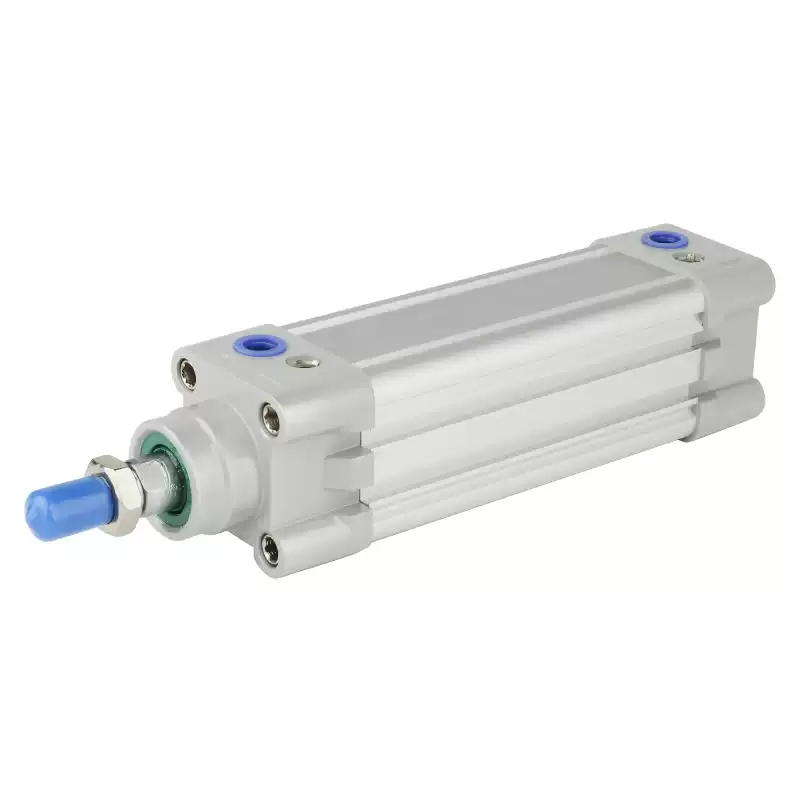

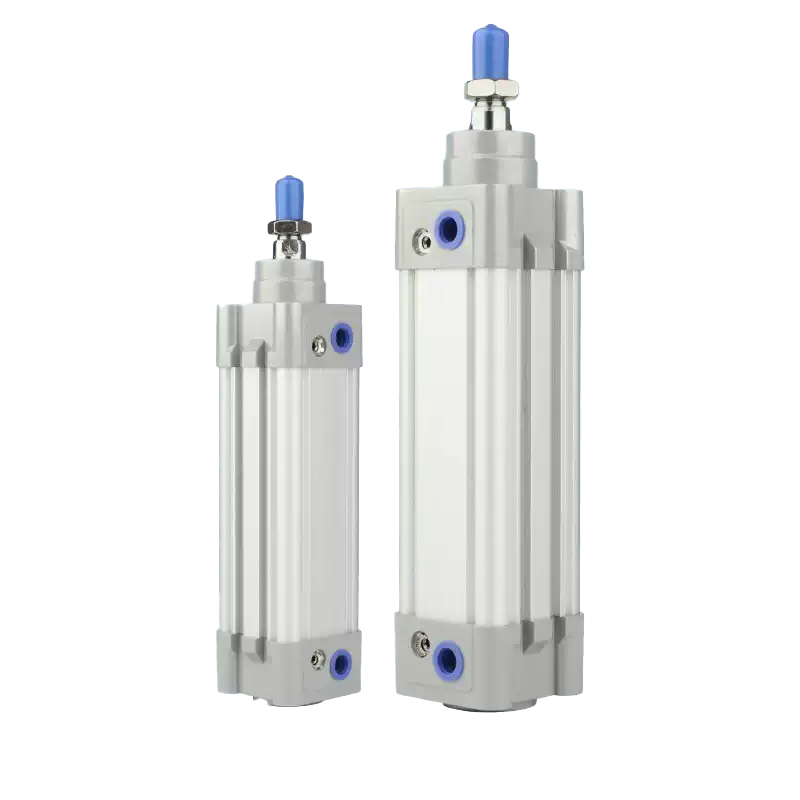

ISO 15552 SE & DNC Series Standard Cylinder

  • ISO 15552 / VDMA 24562 international standard compliance
  • Modern profile aluminum barrel with hidden tie-rods
  • High-precision double-acting pneumatic performance
  • Fully interchangeable with Festo DNC and AirTAC SE series
  • Integrated T-slots for easy sensor mounting
  • High-performance adjustable air cushioning
  • Low-friction self-lubricating seal system
  • Corrosion-resistant hard-chromed piston rod
  • Bore sizes available from 32mm to 125mm

SE & DNC Series: The Next Generation of ISO 15552 Profile Cylinders


The SE and DNC series represent the pinnacle of modern pneumatic design, strictly adhering to the ISO 15552 and VDMA 24562 international standards. These cylinders feature a sophisticated "Profile" (Square) aluminum barrel that hides the tie-rods, providing a clean, aesthetic look while preventing dust accumulation and simplifying maintenance.


Advanced Design & Engineering Highlights

  • Universal Compatibility: Designed as direct, high-quality alternatives to the Festo DNC and AirTAC SE series. Their standardized dimensions ensure 100% interchangeability with existing global pneumatic systems.

  • Integrated T-Slots: The profile barrel includes integrated slots on three or four sides, allowing for the flush mounting of magnetic sensors (proximity switches) without the need for additional brackets.

  • Superior Cushioning System: Equipped with high-performance adjustable pneumatic cushions at both ends, ensuring smooth deceleration even under high loads and high-speed operation.

  • High-End Material Selection:

    • Barrel: Anodized aluminum alloy profile for maximum corrosion resistance.

    • Piston Rod: Hard-chromed carbon steel (Standard) or Stainless Steel (Optional) for long-term wear resistance.

    • Seals: Premium TPU/NBR seals ensuring low friction and a service life of over 5,000 kilometers.


Foreign Trade Professional Highlights (Copy & Paste Ready)

ISO 15552 / VDMA 24562 international standard compliance | Modern profile aluminum barrel with hidden tie-rods | High-precision double-acting pneumatic performance | Fully interchangeable with Festo DNC and AirTAC SE series | Integrated T-slots for easy sensor mounting | High-performance adjustable air cushioning | Low-friction self-lubricating seal system | Corrosion-resistant hard-chromed piston rod | Bore sizes available from 32mm to 125mm | Reliable operation in temperatures from -20°C to +80°C.

Technical Specifications


SpecificationDetails
Bore Sizes32, 40, 50, 63, 80, 100, 125 mm
StandardISO 15552 / VDMA 24562
Acting TypeDouble Acting
FluidClean Air (Filtered to 40 microns)
Operating Pressure0.1 ~ 1.0 MPa (14 ~ 145 psi)
Proof Pressure1.5 MPa (215 psi)
CushioningAdjustable Air Cushion (Both ends)
Sensor TypeCS1-M / D-M9B compatible T-slots

Primary Industrial Applications

The SE and DNC profile cylinders are the "gold standard" for:

  • Robotic Packaging Lines: Precision sorting and high-speed palletizing.

  • Food Processing: Clean-profile design prevents debris buildup in hygienic zones.

  • Electronic Assembly: Precise, smooth linear motion for delicate pick-and-place tasks.

  • Automotive Manufacturing: Heavy-duty clamping and positioning on assembly lines.
