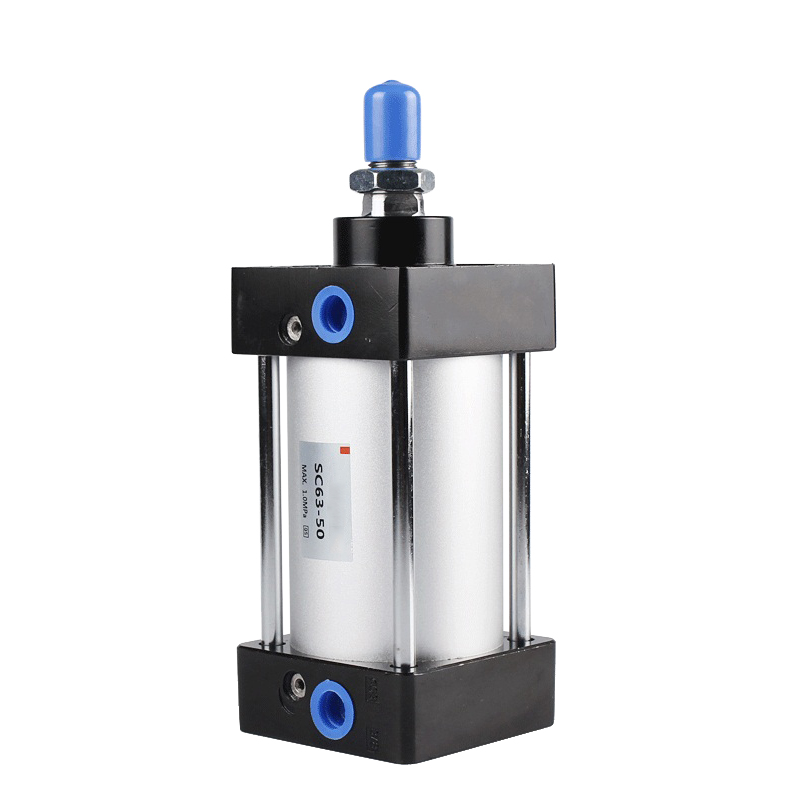

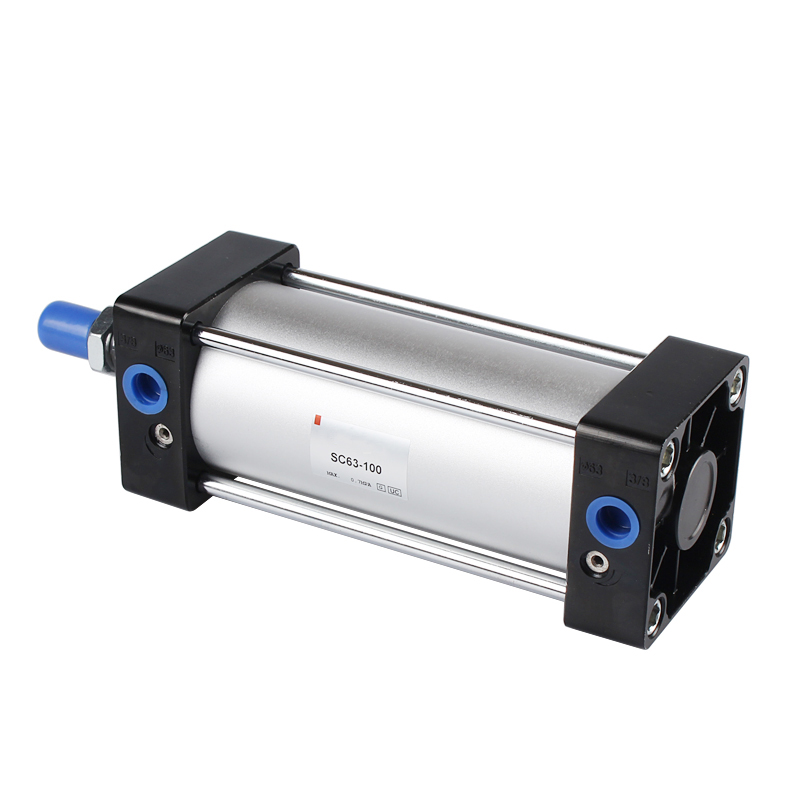

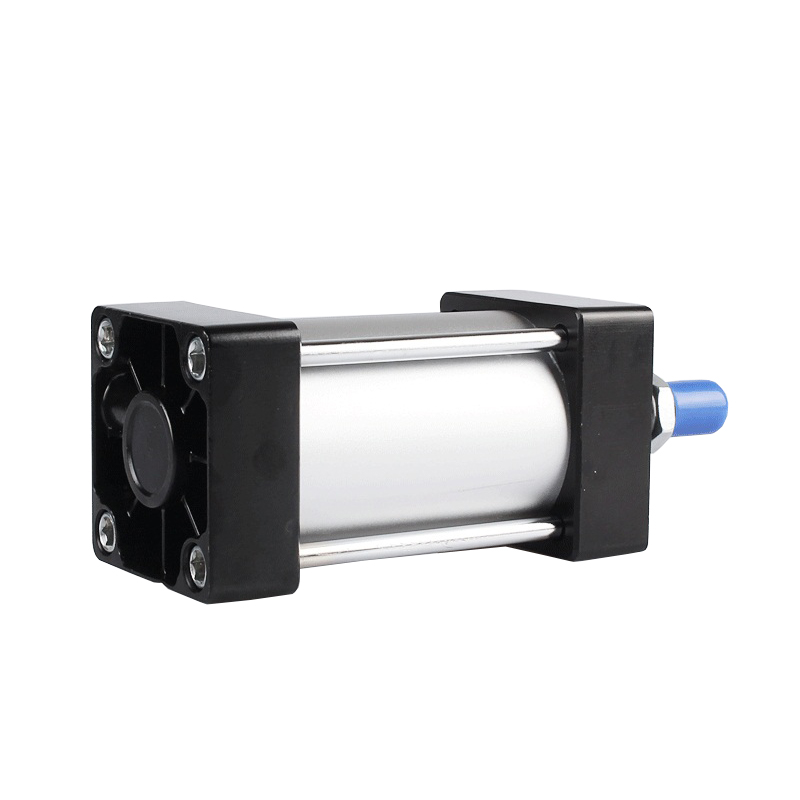

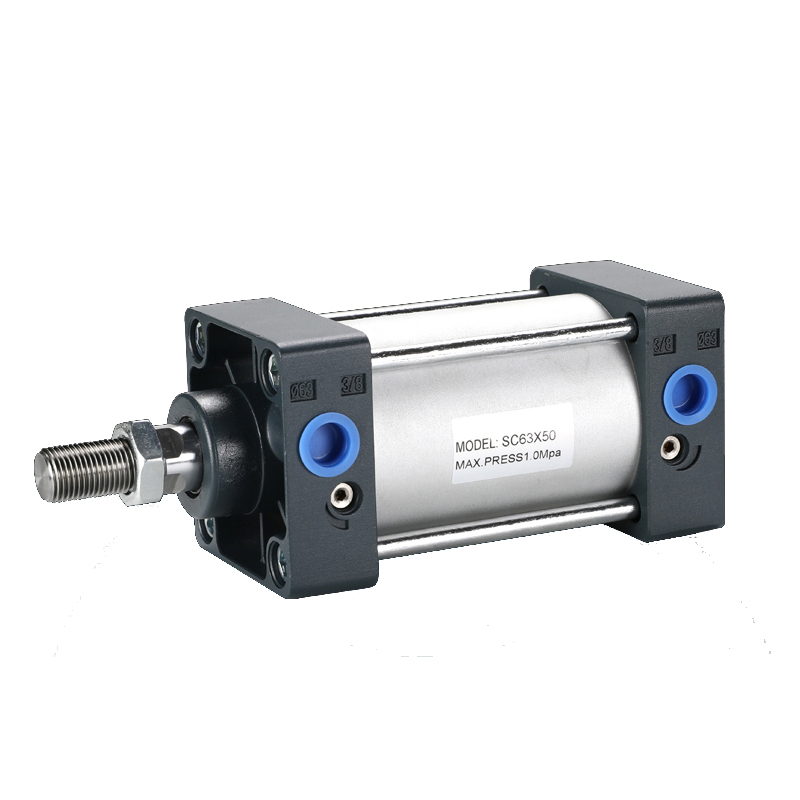

SC Series Standard Pneumatic Cylinder

Product Overview: SC Series Standard Cylinder

The SC Series is the industry-standard choice for heavy-duty pneumatic linear motion. Known for its classic tie-rod construction, this double-acting cylinder offers exceptional structural integrity and ease of maintenance. Designed to perform in demanding factory environments, the SC series provides stable, high-force output across a wide range of bore sizes, making it the "workhorse" of industrial automation.

Key Features & Technical Advantages

• Robust Tie-Rod Design: The external tie-rods provide superior strength and allow for high-pressure operation. This design also facilitates easy disassembly for seal replacement or maintenance, extending the product’s life cycle.

• Adjustable Air Cushioning: Equipped with adjustable cushions at both ends, the SC cylinder ensures smooth deceleration and reduces impact noise. This protects both the cylinder and the machine frame from vibration and wear during high-speed cycling.

• Self-Lubricating Bearings: The piston rod is supported by oil-retaining, self-lubricating bearings that minimize friction, ensure smooth stroke movement, and eliminate the need for frequent external lubrication.

• Hard-Anodized Aluminum Barrel: The cylinder tube is constructed from high-quality aluminum alloy with a hard-anodized internal surface, providing excellent wear resistance and protection against corrosion.

• Precision-Ground Piston Rod: The chrome-plated steel or stainless steel piston rod is precision-ground to ensure a tight seal and consistent linear accuracy under varying loads.

• Multiple Mounting Configurations: Supports a variety of mounting accessories, including Foot (LB), Flange (FA/FB), Clevis (CA/CB), and Trunnion (TC), ensuring compatibility with any machinery layout.

Technical Specifications

• Bore Sizes: Available from 32mm to 200mm (and larger for custom applications).

• Operating Pressure: Standard range of 0.1 MPa to 1.0 MPa (1.0 to 10 bar).

• Speed Range: Capable of operating at speeds between 50mm/s and 800mm/s.

• Temperature Range: Engineered for performance from -20°C to +80°C.

Primary Applications

• Automotive Production: Clamping, lifting, and transferring heavy components.

• Material Handling: Automated sorting, pushing, and conveying systems.

• Packaging Machinery: Large-scale sealing, pressing, and boxing operations.

• Heavy Industry: Woodworking, textile manufacturing, and metal fabrication.
