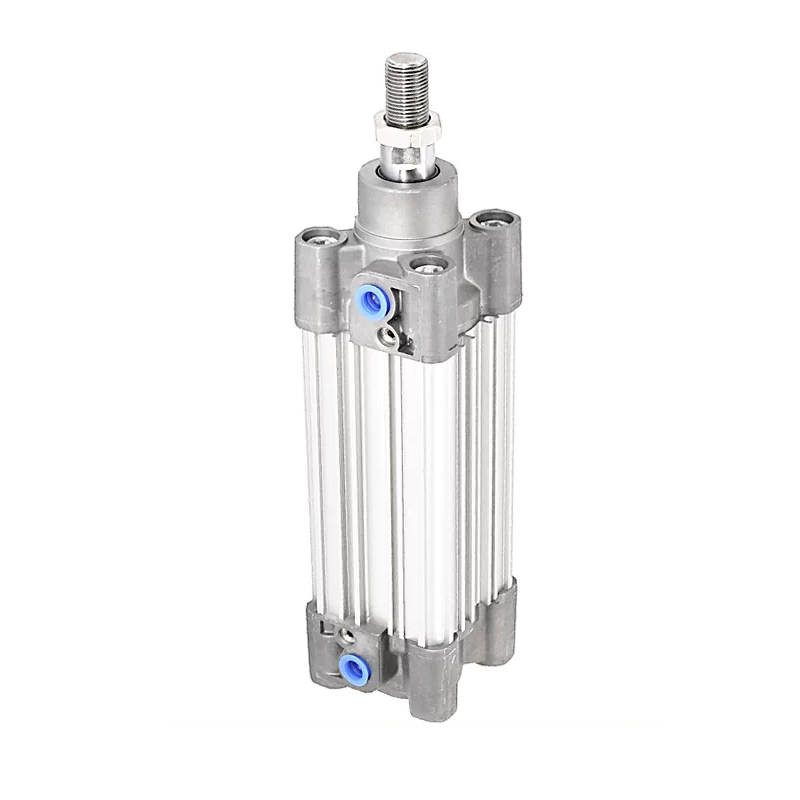

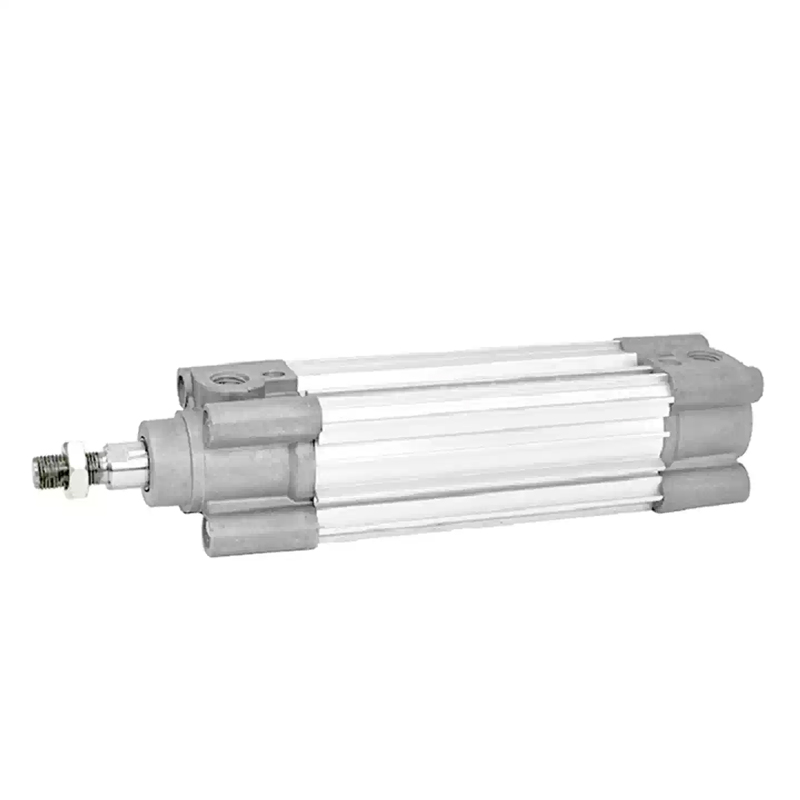

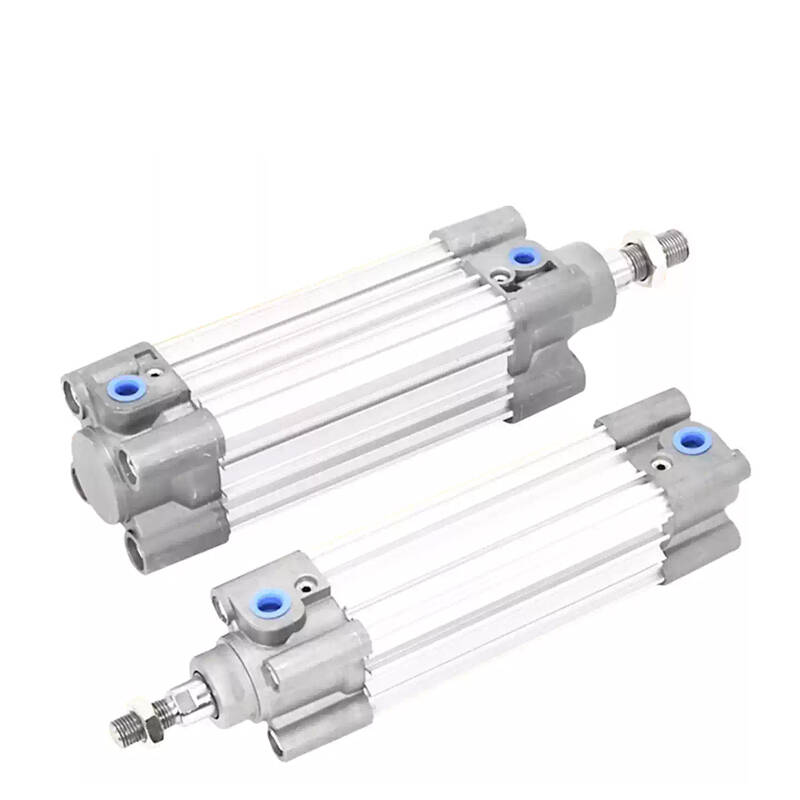

SMC Type CP96 Series ISO 15552 Standard Cylinder
- ISO 15552 compliant standard cylinder
- Lightweight profile design with enclosed tie-rods
- Double-acting pneumatic performance
- Adjustable air cushion plus elastic bumpers for impact reduction
- Integrated auto-switch slots on 4 sides for flush mounting
- High-quality anodized aluminum barrel
- Smooth finish for easy cleaning and maintenance
- Bore sizes from 32mm to 125mm
- Fully interchangeable with global ISO 15552 brands
- High-durability seals for long cycle life.
SMCType CP96 Series: The Advanced ISO 15552 Profile Cylinder
The SMC CP96 series is a high-performance standard cylinder designed to meet the ISO 15552 international standard. It features a modern, clean "Profile" design where the tie-rods are fully enclosed within the aluminum body. This not only provides a sleek appearance but also prevents dust accumulation and makes the cylinder ideal for applications requiring high hygiene standards.
Key Technical Features & Innovation
Enclosed Tie-Rod (Profile) Design: The smooth surface of the CP96 prevents dirt buildup and allows for easy cleaning. It is significantly lighter than traditional tie-rod cylinders, reducing the overall weight of the machinery.
Advanced Cushioning System: The CP96 combines an adjustable air cushion with a rubber bumper at the end of the stroke. This "dual cushioning" eliminates metal-to-metal noise and vibrations, ensuring ultra-smooth deceleration and longer service life.
Integrated Auto-Switch Slots: All four sides of the profile barrel feature integrated T-slots. This allows SMC D-M9 and D-A9 auto-switches to be mounted flush with the cylinder body, protecting them from mechanical damage and saving space.
High Precision & Low Friction: Utilizing SMC’s world-class sealing technology, the CP96 offers low starting pressure and consistent linear motion even at high speeds.
Technical Specifications (Bore & Stroke)
Primary Industrial Applications
The SMC CP96 is the premium choice for:
Food & Beverage Packaging: Smooth profile prevents debris buildup in wash-down zones.
Automotive Production: Precise clamping and positioning on robotic assembly lines.
Life Sciences & Medical: Clean and quiet operation for laboratory automation.
General Factory Automation: High-frequency sorting, lifting, and shifting tasks.
