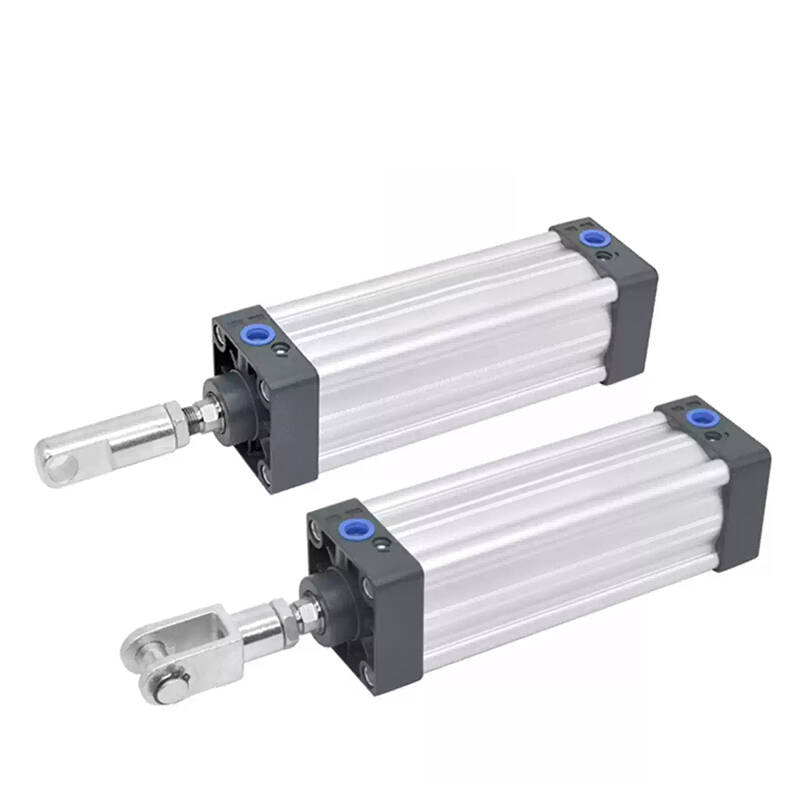

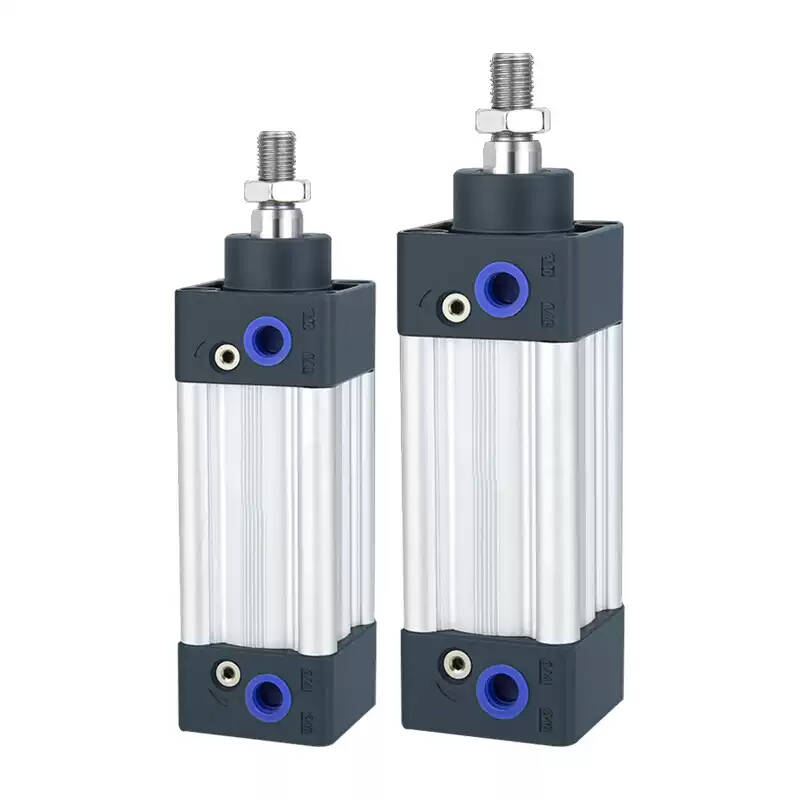

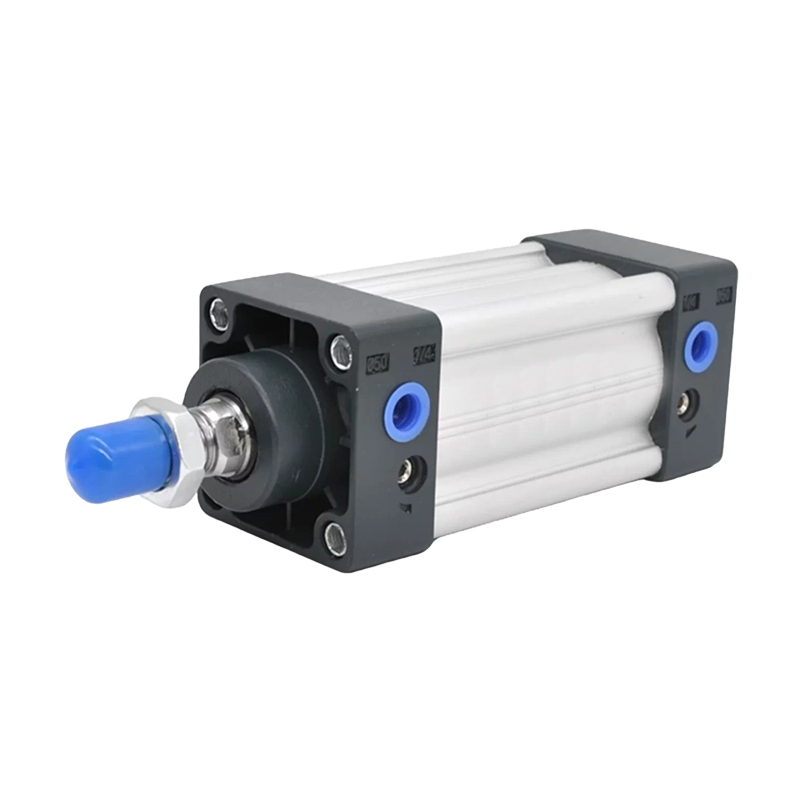

SU Series Tie-Rod Standard Cylinder

  • SU series standard cylinder
  • Internal tie-rod design for smooth profile
  • Double-acting pneumatic performance
  • Adjustable air cushioning for impact protection
  • High-strength aluminum alloy barrel
  • No lubrication required for low maintenance
  • Magnetic piston option for sensor detection
  • Bore sizes: 32mm, 40mm, 50mm, 63mm, 80mm, 100mm
  • Wide stroke range up to 1000mm
  • ISO-style mounting compatibility
  • High-frequency response and long service life

AirTAC Type SU Series: High-Performance Internal Tie-Rod Standard Cylinder

The AirTAC SU series is a signature standard cylinder recognized for its robust performance and clean aesthetic. Unlike traditional cylinders with exposed rods, the SU series features an internal tie-rod design, which hides the tension rods within the profile. This not only provides a smooth, easy-to-clean surface but also enhances the structural integrity of the cylinder.


Key Technical Features & Highlights

  • Adjustable Air Cushioning: Equipped with adjustable cushions at both the front and rear caps, ensuring the cylinder runs smoothly, safely, and without loud impact noise.

  • Non-Lubricated Design: The high-quality seals and self-lubricating bearings allow the cylinder to operate without additional oil lubrication, perfect for clean environments.

  • Durable Construction: Built with a high-strength aluminum alloy barrel and a hard-chromed carbon steel piston rod (stainless steel available) for superior wear and corrosion resistance.

  • Multiple Mounting Options: Compatible with various AirTAC standard accessories, including FA, FB, CA, CB, LB, and Y-joints.


Technical Specifications (Bore & Stroke)


FeatureSpecifications
Bore Sizes (mm)32, 40, 50, 63, 80, 100
Acting TypeDouble Acting
FluidClean Air (40-micron filtered)
Operating Pressure0.15 ~ 1.0 MPa (22 ~ 145 psi)
Proof Pressure1.5 MPa (215 psi)
Speed Range30 ~ 800 mm/s
Cushion TypeAdjustable Air Cushion
Standard Strokes25, 50, 75, 100, 125, 150, 175, 200, 250, 300, 400, 500 ... up to 1000mm

Common Model Examples

  • SU32x50: 32mm Bore, 50mm Stroke.

  • SU40x100-S: 40mm Bore, 100mm Stroke, with Magnet (S).

  • SU63x200: 63mm Bore, 200mm Stroke.

  • SU100x500: 100mm Bore, 500mm Stroke.

Primary Industrial Applications

The AirTAC SU series is the preferred choice for:

  • Automated Assembly Lines: Precision pushing and pulling.

  • Packaging Machinery: High-speed sorting and boxing.

  • Textile & Food Industry: Clean profile prevents dust and debris buildup.

  • General Manufacturing: Reliable linear motion for jigs and fixtures.
