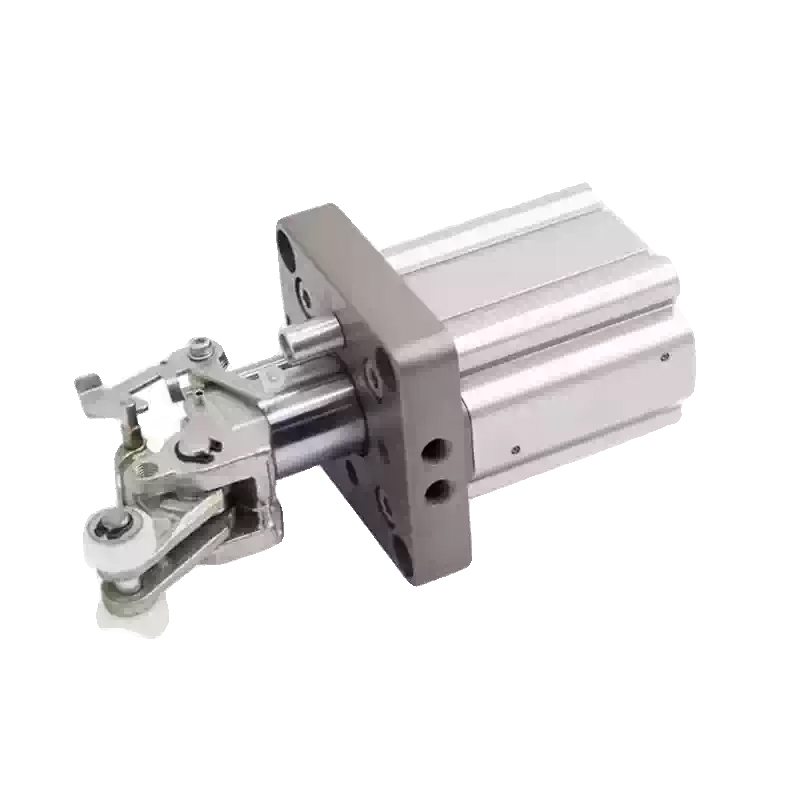

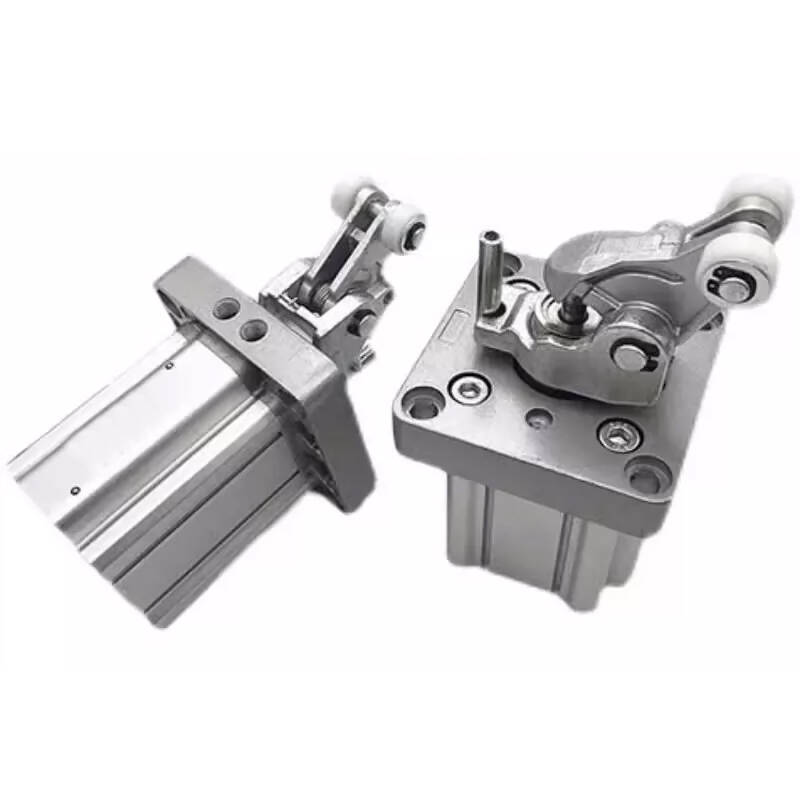

RS2H Heavy-Duty Stopper Cylinder
- Heavy-duty RS2H series stopper cylinder
- High impact resistance for heavy pallets
- Integrated adjustable shock absorber for smooth stopping
- Reinforced piston rod for maximum lateral load capacity
- Robust aluminum alloy body with hard-anodized finish
- Magnetic auto-switch compatible (flush T-slots)

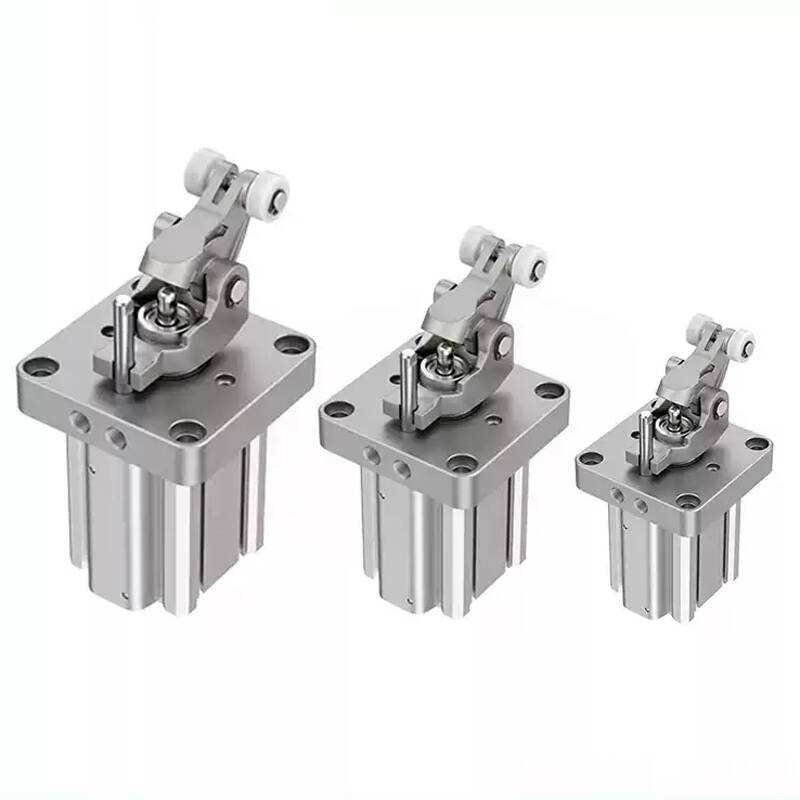

- Large bore sizes: 50mm, 63mm, 80mm
- Ideal for automotive and heavy machinery assembly
- Long service life in high-cycle environments
- Easy maintenance and installation.
RS2H Series: The Heavy-Weight Champion of Conveyor Stop Control
The RS2H series is a high-performance, heavy-duty stopper cylinder engineered for the most demanding industrial environments. Unlike standard stoppers, the RS2H is specifically designed to halt heavy pallets and high-inertia loads on conveyor systems. Its reinforced internal structure and integrated shock absorption technology make it the "gold standard" for reliability in heavy manufacturing.
Key Technical Features & Engineering Highlights
Integrated Adjustable Shock Absorber: The RS2H comes equipped with a built-in, high-capacity shock absorber that allows for fine-tuning of the stopping force. This ensures smooth, bounce-free deceleration even for maximum-weight pallets.
Superior Lateral Load Capacity: Built with an extra-thick piston rod and a reinforced guide system, the RS2H can handle massive side-impact forces without bending or leaking.
Heavy-Duty Toggle Mechanism: The unique internal design provides a mechanical lock-out effect when extended, ensuring the pallet is held firmly in place without putting undue stress on the pneumatic seals.
Durable Profile Body: The hard-anodized aluminum body features integrated T-slots, allowing magnetic auto-switches to be mounted flush for precise position feedback.
Customizable Lever Types: Available in multiple lever and roller configurations to match specific pallet designs and conveyor speeds.
Technical Specifications Overview
Primary Industrial Applications
The RS2H series is the preferred actuator for heavy-duty automation:
Automotive Powertrain Lines: Stopping engine blocks, transmissions, and EV battery packs.
Heavy Machinery Assembly: Managing large metal components on production lines.
Appliances (White Goods): High-impact stopping for washing machines and refrigerators.
Automated Logistics: Handling heavy-duty steel pallets and high-load containers.
