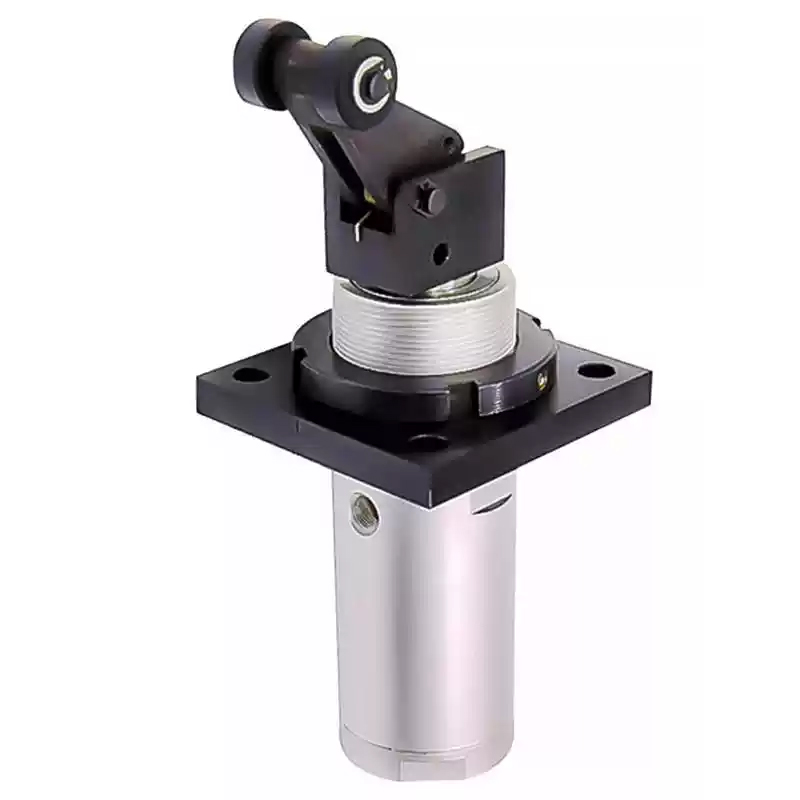

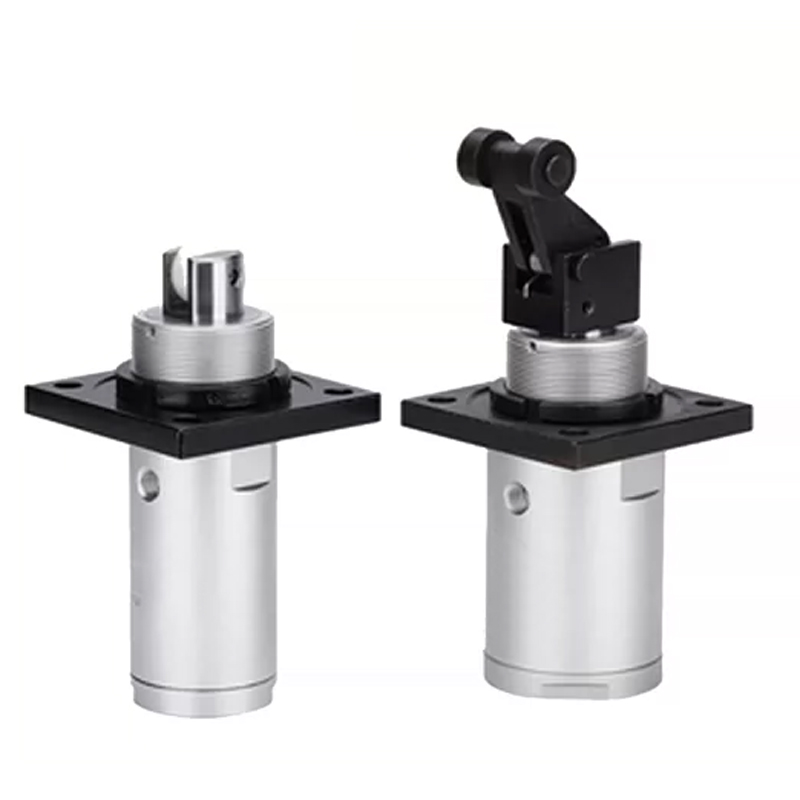

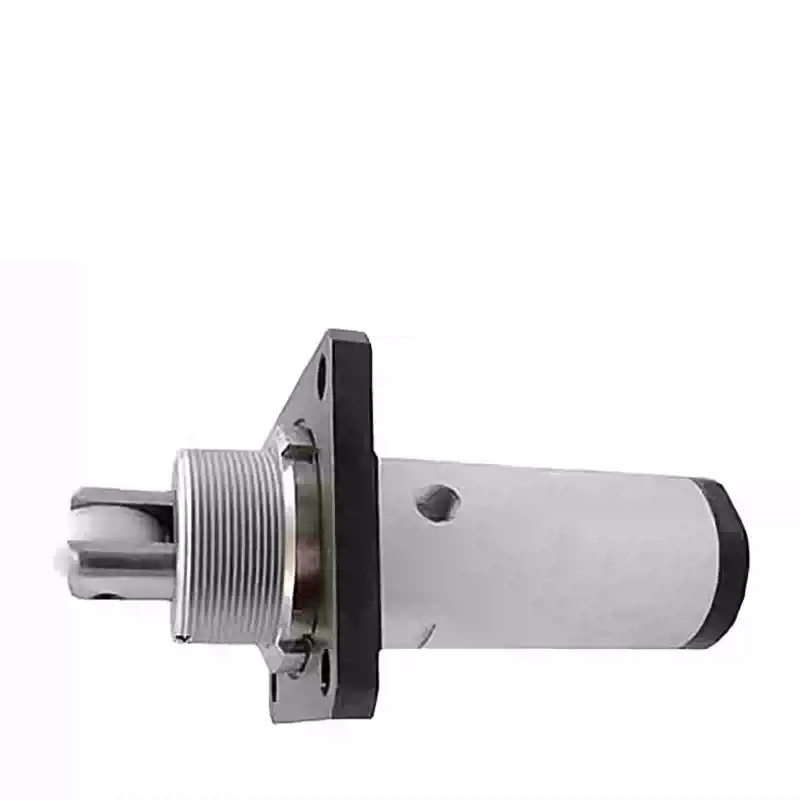

RSG Series Heavy-Duty Stopper Cylinder
- Heavy-duty RSG series stopper cylinder
- High impact resistance for automated conveyors
- Reinforced piston rod for maximum durability
- High lateral load capacity guide system
- Compact and space-saving square profile
- Hard-anodized aluminum alloy body
- Magnetic auto-switch compatible (flush mounting)
- Bore sizes: 20mm, 25mm, 32mm, 40mm, 50mm
- Reliable pallet stopping for sorting lines
- Easy installation with multiple mounting holes.
RSG Series: The Rugged Solution for Conveyor Stop Control
The RSG series is a specialized heavy-duty stopper cylinder designed for the most demanding industrial automation environments. Engineered to stop pallets and workpieces reliably on conveyor systems, the RSG series stands out for its superior impact resistance and ability to handle high lateral loads without mechanical failure.
Key Technical Features & Engineering Highlights
Reinforced Piston Rod: The RSG series features an extra-thick, high-strength piston rod designed to absorb the kinetic energy of heavy pallets moving at high speeds.
High Lateral Load Capacity: Built with high-precision guide bushes and a robust aluminum body, these cylinders are specifically designed to withstand significant side-loading forces during the stopping process.
Space-Saving Compact Design: Its square, low-profile body allows for easy integration into modern, narrow conveyor frames where space is at a premium.
Magnetic Sensing Ready: Integrated slots on the cylinder body allow for the flush mounting of magnetic sensors (auto-switches) to monitor "Extracted" and "Retracted" positions.
Durable Finish: The hard-anodized aluminum alloy body provides excellent corrosion resistance, ensuring a long service life even in dusty or humid factory conditions.
Technical Specifications Overview
Primary Industrial Applications
The RSG series is widely utilized in sectors requiring precise motion control:
Automated Warehousing: Pallet flow control and sorting on high-speed conveyors.
Automotive Assembly: Stopping engine blocks or chassis components for robot interaction.
Packaging Lines: Managing product spacing and boxing flow.
Electronics Manufacturing: Gentle yet firm stopping for delicate assembly trays.
