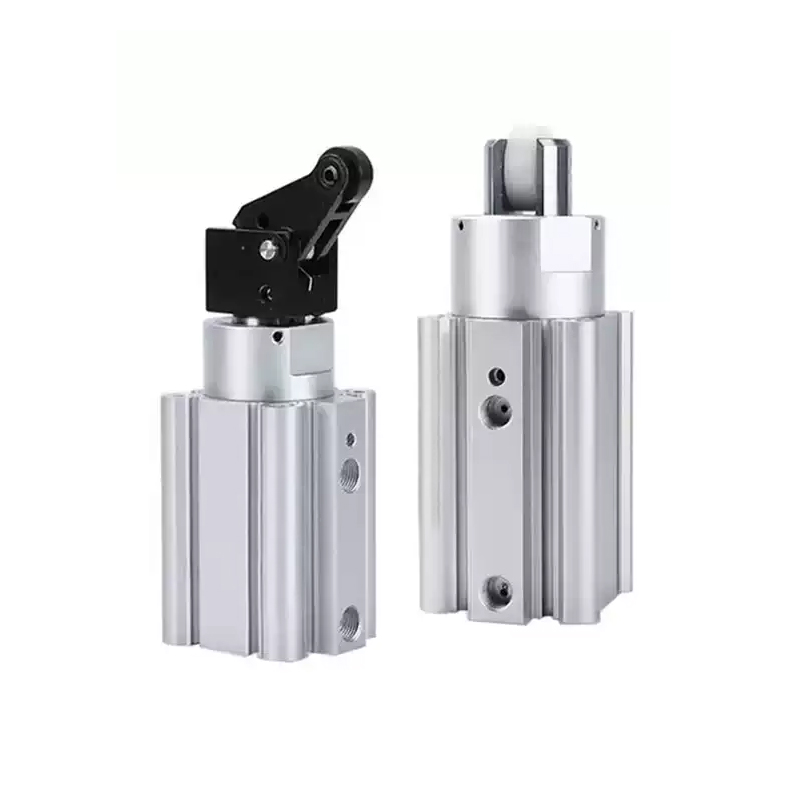

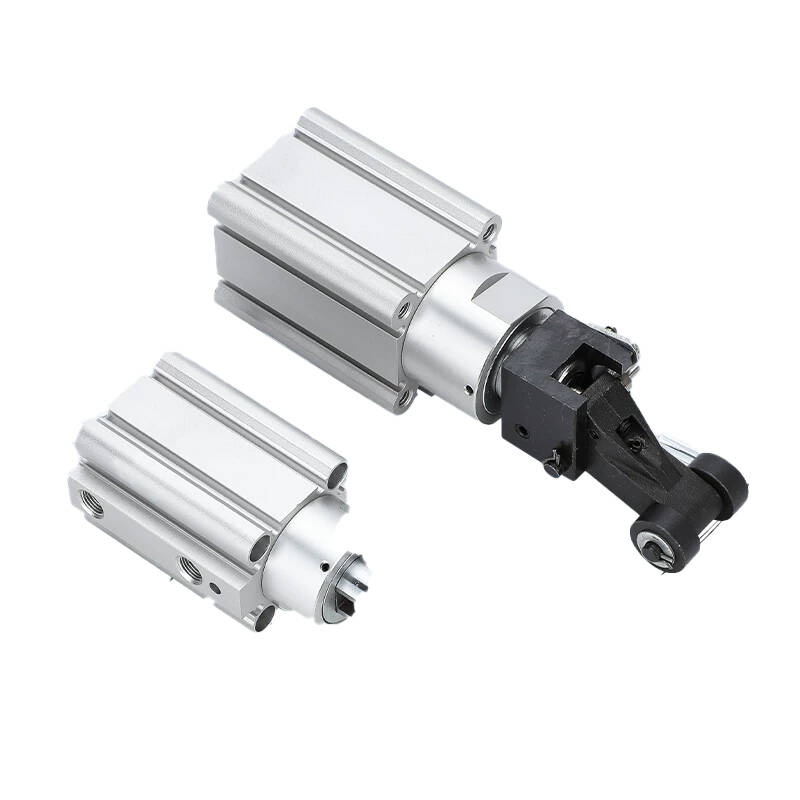

RSQ & STW Series High-Impact Stopper Cylinder
- Heavy-duty RSQ series stopper cylinder
- High impact resistance for conveyor lines
- Reinforced piston rod for long-term durability
- Integrated shock absorber for smooth stopping
- Multiple lever types: Fixed, Roller, and Adjustable
- Lightweight aluminum alloy body
- Magnetic auto-switch compatible (T-slots)
- Bore sizes: 16mm, 20mm, 32mm, 40mm, 50mm
- Reliable pallet control for automation
- Smooth and stable linear motion
- Easy maintenance and installation.
Advanced Engineering & Performance Features
High Impact Resistance: Built with a reinforced, large-diameter piston rod and a robust aluminum body to handle significant kinetic energy without bending or failure.
Integrated Shock Absorption: Many RSQ models feature internal shock absorbers or dampers that ensure smooth, bounce-free stopping, protecting your delicate workpieces and conveyor hardware.

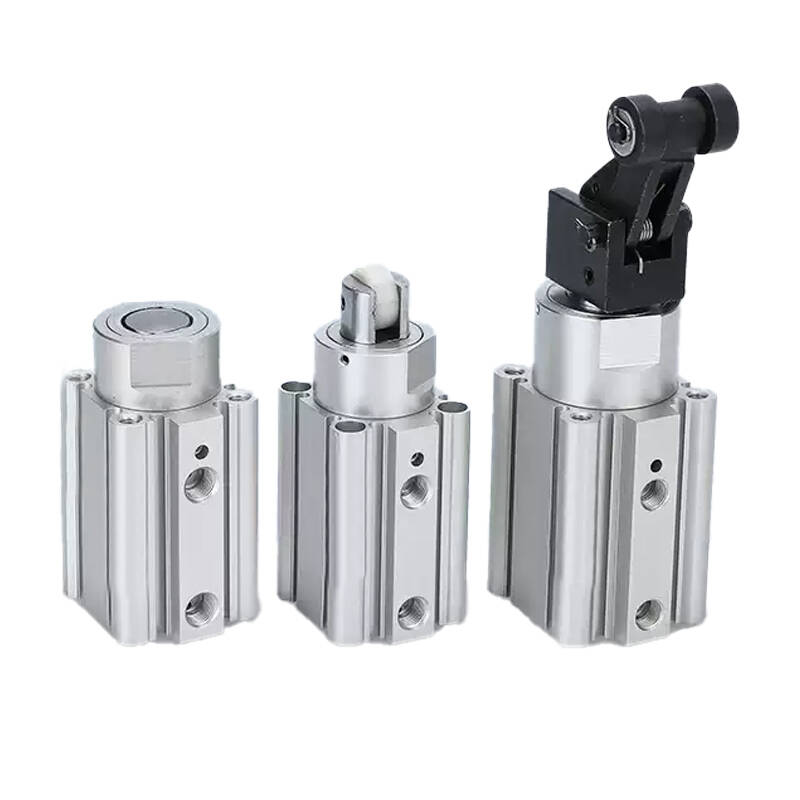

Versatile Actuation: Available in multiple lever configurations, including:
Fixed Height Type: For standard stopping tasks.
Roller Type: Reduces friction between the stopper and the pallet.
Lever Type: Offers adjustable stopping points.
Space-Saving Design: The compact profile allows for easy installation in tight conveyor configurations, while the T-slots on the body permit flush mounting of auto-switches for position detection.
Technical Specifications Overview
Primary Industrial Applications
The RSQ stopper cylinder is the preferred choice for:
Automated Conveyor Systems: Managing pallet flow in warehouses and factories.
Packaging Lines: Precise stopping for labeling, filling, or boxing operations.
Automotive Assembly: Positioning heavy engine blocks or chassis components.
Electronic Manufacturing: Gentle stopping for delicate circuit board carriers.
