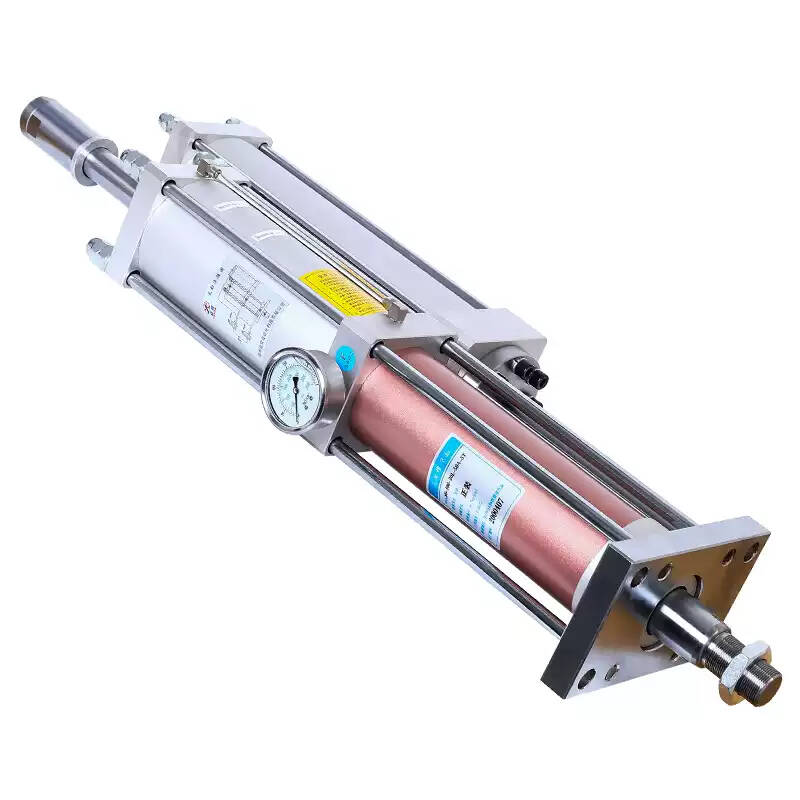

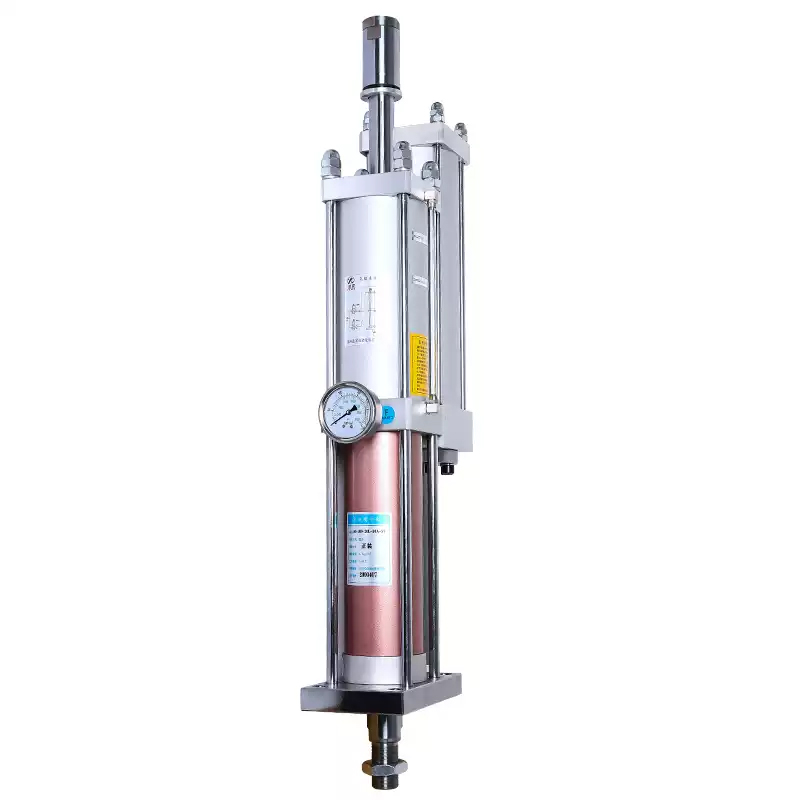

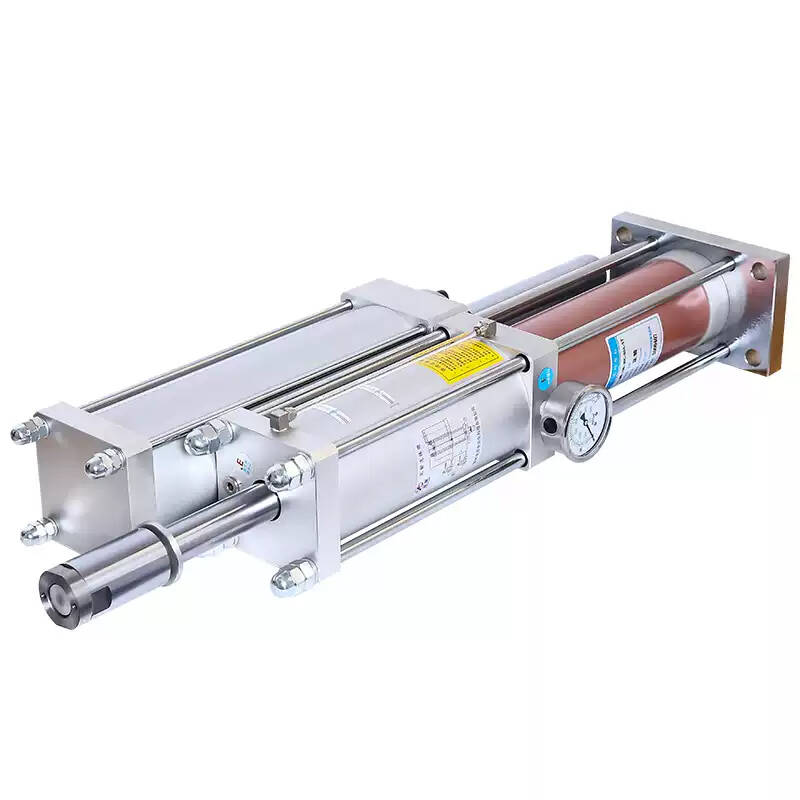

MPT Series Gas-Liquid Booster Cylinder
- High-performance MPT series gas-liquid booster cylinder
- 1 to 100 tons of hydraulic output force
- Combined pneumatic speed and hydraulic power
- Energy-saving operation with no hydraulic pump required
- Sealed oil-air isolation to prevent leakage
- Fast approach and high-pressure power stroke
- Compact vertical design for space-saving
- Ideal for punching, riveting, bending, and extrusion
- Low noise and low vibration operation
- Easy to install and adjust.
MPT Series: The Ultimate Hybrid of Pneumatic Speed & Hydraulic Force
The MPT series booster cylinder is an innovative "air-over-oil" actuator that combines the high-speed motion of a pneumatic cylinder with the immense force of a hydraulic system. Designed for precision metalworking and assembly, the MPT series is the most cost-effective and energy-efficient solution for applications requiring high-tonnage pressure without the need for a complex hydraulic power unit.
Advanced Engineering & Performance Features
Dual-Stage Motion:
Approach Stroke: Fast pneumatic movement to reach the workpiece quickly.
Power Stroke: Automatic transition to high-pressure hydraulic force for the actual work (punching, riveting, etc.).
Energy Saving & Eco-Friendly: Operates solely on standard compressed air (0.2–0.7MPa). It consumes 50%–70% less energy than traditional hydraulic systems and requires no electric motors or pumps.
Sealed Oil-Air Isolation: Features a high-precision, multi-layer sealing system that prevents air from mixing with oil, ensuring stable pressure output and zero oil leakage.
Compact & Maintenance-Free: The vertical design saves valuable workspace. Self-lubricating components ensure a service life of millions of cycles with minimal maintenance.
Adjustable Force: Output force can be easily fine-tuned by adjusting the input air pressure.
Technical Specifications Overview
Primary Industrial Applications
The MPT booster cylinder is the preferred choice for:
Metal Stamping & Punching: High-speed hole punching and corner cutting.
Riveting & Press-Fitting: Joining sheet metal parts or pressing bearings.
Bending & Molding: Precision forming of metal and plastic components.
Clamping & Extrusion: High-force holding for welding or machining jigs.
Nut & Stud Insertion: Reliable force for self-clinching fasteners.
