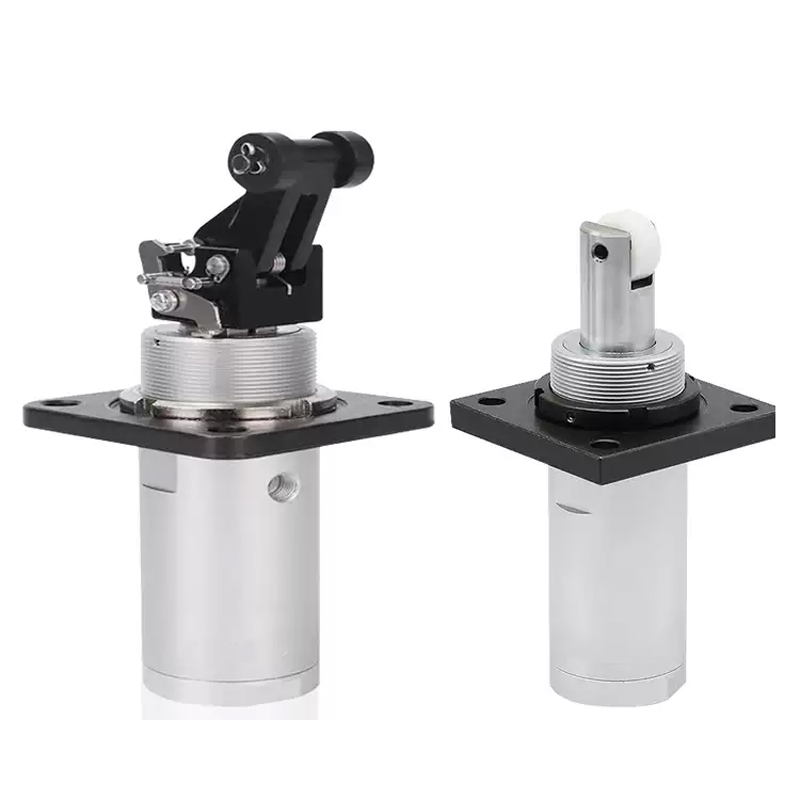

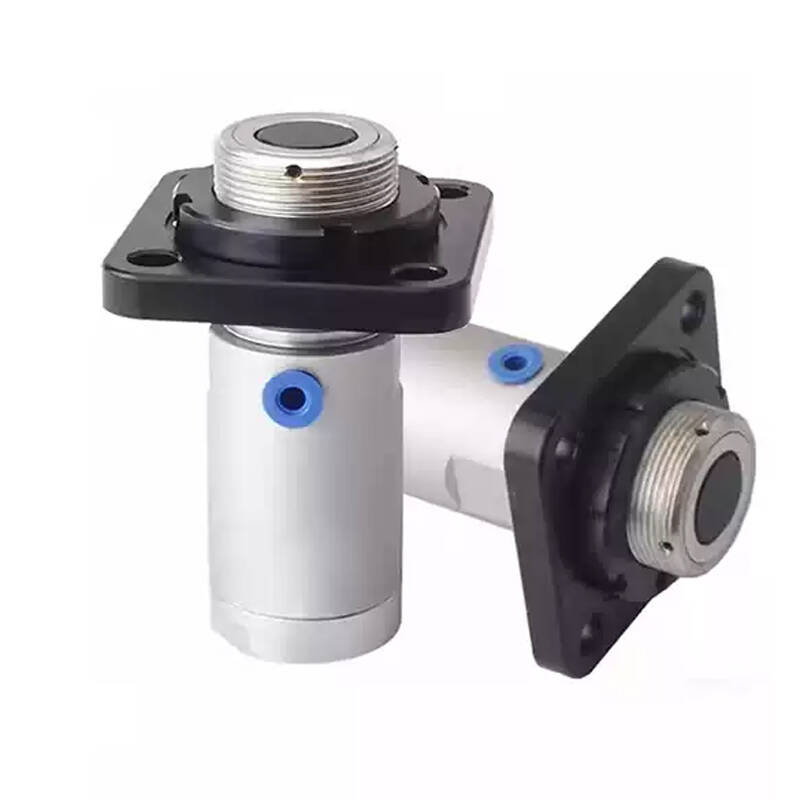

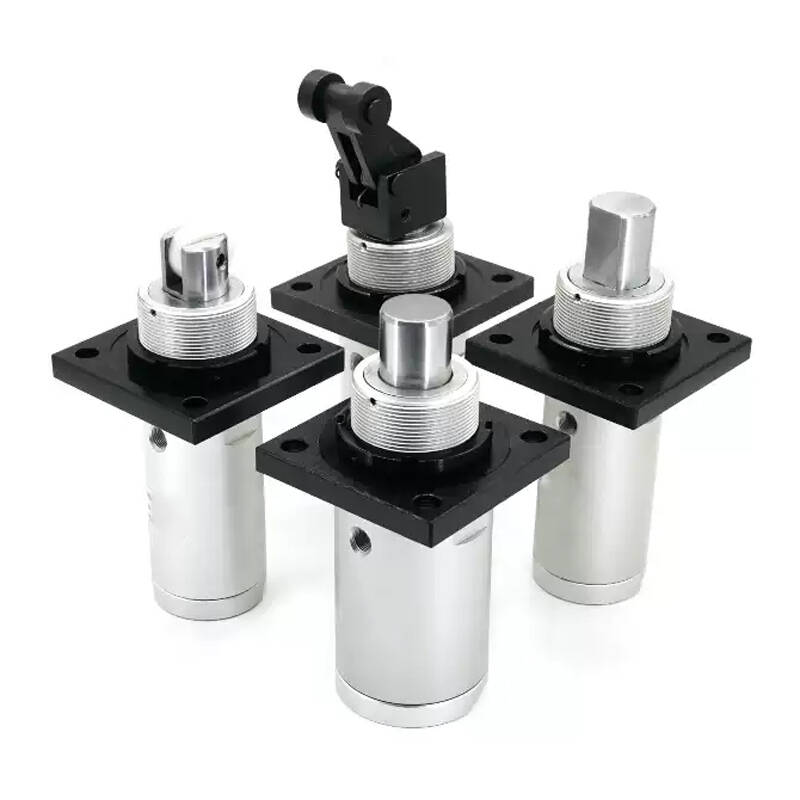

TWG Series Lever-Type Stopper Cylinder
- High-performance TWG series lever-type stopper cylinder
- Integrated shock absorber for smooth, bounce-free stopping
- Durable roller lever to reduce pallet wear and friction
- High impact resistance for automated conveyor lines
- Hard-anodized aluminum alloy body for corrosion resistance
- Compact design with integrated T-slots for sensors
- Bore sizes: 20mm, 32mm, 40mm, 50mm
- Ideal for pallet conveyors and high-speed sorting
- Reliable operation in high-cycle industrial environments
- Easy mounting and low maintenance requirements.
TWG Series: High-Performance Lever-Type Roller Stopper Cylinder
The TWG series is a specialized pneumatic actuator designed for stopping and holding pallets or workpieces on conveyor systems. Featuring a lever-type mechanism with an integrated roller, the TWG series converts horizontal impact into controlled motion, ensuring that even high-speed loads are halted smoothly without damage to the pallet or the machine.
Key Technical Features & Engineering Highlights
Integrated Shock Absorption: The TWG series comes equipped with a built-in shock absorber (often adjustable) that eliminates the "bounce-back" effect during stopping. This is critical for protecting delicate electronic or mechanical assemblies.
Durable Roller Lever Design: The lever is fitted with a high-wear-resistance roller that reduces friction between the stopper and the pallet, ensuring a smooth release and extending the service life of the conveyor components.
Massive Impact Resistance: Engineered with a reinforced pivot structure and a robust aluminum alloy body, these cylinders can handle significant frontal impacts from heavy-duty industrial pallets.
Space-Saving Profile: Its compact, square-body design makes it easy to install in modern conveyor frames where space is at a premium.
Magnetic Sensing Ready: Integrated T-slots on the cylinder body allow for the flush mounting of magnetic sensors (auto-switches) to provide precise feedback for PLC-controlled automation.
Technical Specifications Overview
Primary Industrial Applications
The TWG roller stopper is widely utilized in sectors requiring precise motion control:
Automated Assembly Lines: Precisely stopping product carriers for robotic interaction.
Electronic Manufacturing: Gentle stopping for delicate SMT tray conveyors.
Packaging & Logistics: Managing pallet flow in high-speed distribution and sorting centers.
Food & Beverage Processing: Reliable stopping for clean-room or wash-down compatible lines.
