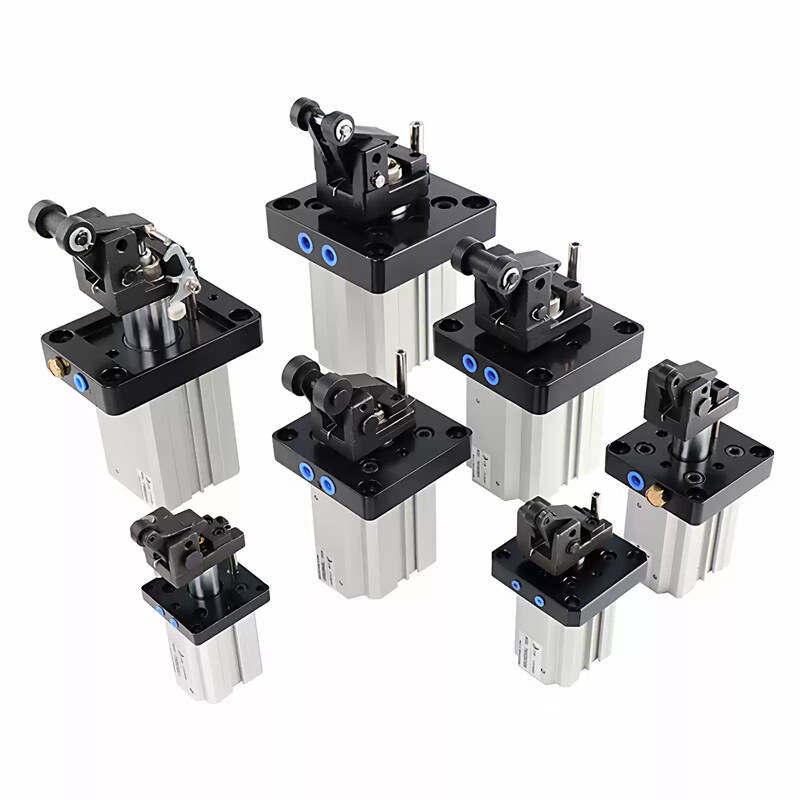

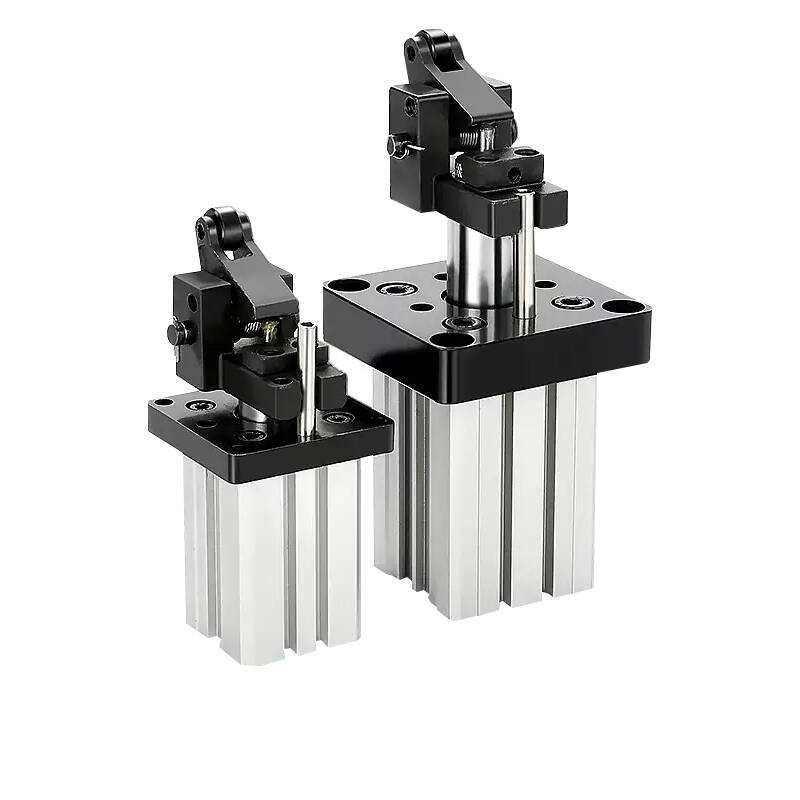

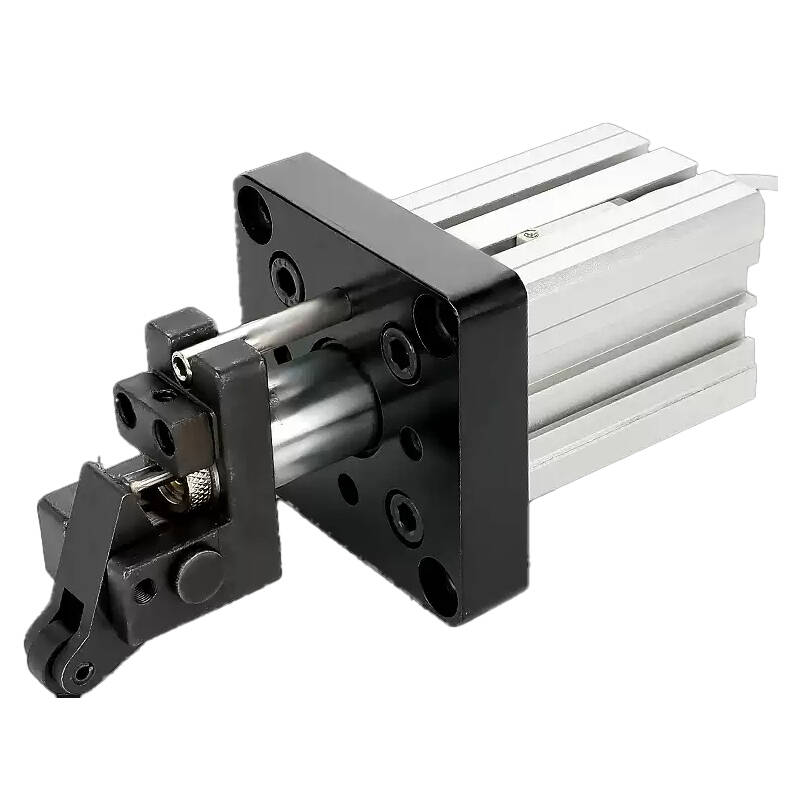

TWH TWM TDH TDM Series Heavy-Duty Stopper Cylinder

  • Heavy-duty lever-type stopper cylinder
  • TWH TWM TDH TDM TTH TTM series compatible
  • High impact resistance for heavy-duty pallets
  • Integrated adjustable shock absorber for smooth stopping
  • Reinforced forged steel lever for maximum durability
  • Compact aluminum alloy body with hard-anodized finish
  • Magnetic auto-switch compatible (flush T-slots)
  • Bore sizes: 20mm, 32mm, 40mm, 50mm
  • Ideal for automotive, white goods, and heavy logistics
  • High lateral load capacity and long service life.

TWH/TWM Series: Professional Solutions for Heavy-Load Conveyors


The TWH, TWM, TDH, TDM, TTH, and TTM series are the "Heavy Artillery" of pneumatic stopper cylinders. Engineered for the most demanding automated production lines, these lever-type actuators are designed to halt heavy pallets (up to several hundred kilograms) moving at high speeds with absolute precision and zero damage.

Technical Design & Engineering Highlights

  • Massive Impact Resistance: Unlike standard vertical stoppers, these series utilize a reinforced lever mechanism that converts horizontal impact into controlled vertical energy absorption.

  • Integrated High-Capacity Shock Absorber:

    • "H" Series (TWH, TDH, TTH): Focuses on Heavy-Duty structural stability for maximum impact force.

    • "M" Series (TWM, TDM, TTM): Features integrated Adjustable Shock Absorbers to fine-tune the deceleration based on the specific load weight and conveyor speed.

  • Superior Lateral Load Design: Equipped with extra-thick pivot pins and high-precision guide bushes to prevent mechanical wear and ensure a service life of millions of cycles.

  • Robust Aluminum Body: Hard-anodized aluminum alloy body provides excellent corrosion resistance and includes integrated T-slots for flush-mounted magnetic sensors.

  • Safety Lock-Out: The mechanical toggle design ensures that the lever remains securely in the stop position even under fluctuating air pressure.


Technical Specifications Overview

FeatureDetails
Bore Sizes (mm)20, 32, 40, 50
Acting TypeDouble Acting / Single Acting (Spring Return)
Operating Pressure0.15 ~ 1.0 MPa (22 ~ 145 psi)
CushioningIntegrated Shock Absorber + Rubber Bumper
Lever OptionsRoller Lever / Fixed Lever / Adjustable Buffer Lever
Ambient Temp.-10°C to +60°C (No freezing)

Primary Industrial Applications

These heavy-duty series are the top choice for:

  • Automotive Powertrain Lines: Stopping engine blocks, transmissions, and chassis sub-assemblies.

  • EV Battery Assembly: Precise and gentle stopping of heavy battery packs.

  • Appliance Manufacturing: Managing high-speed lines for washing machines and refrigerators.

  • Heavy-Duty Pallet Logistics: Controlling flow in automated steel or wooden pallet distribution centers.
