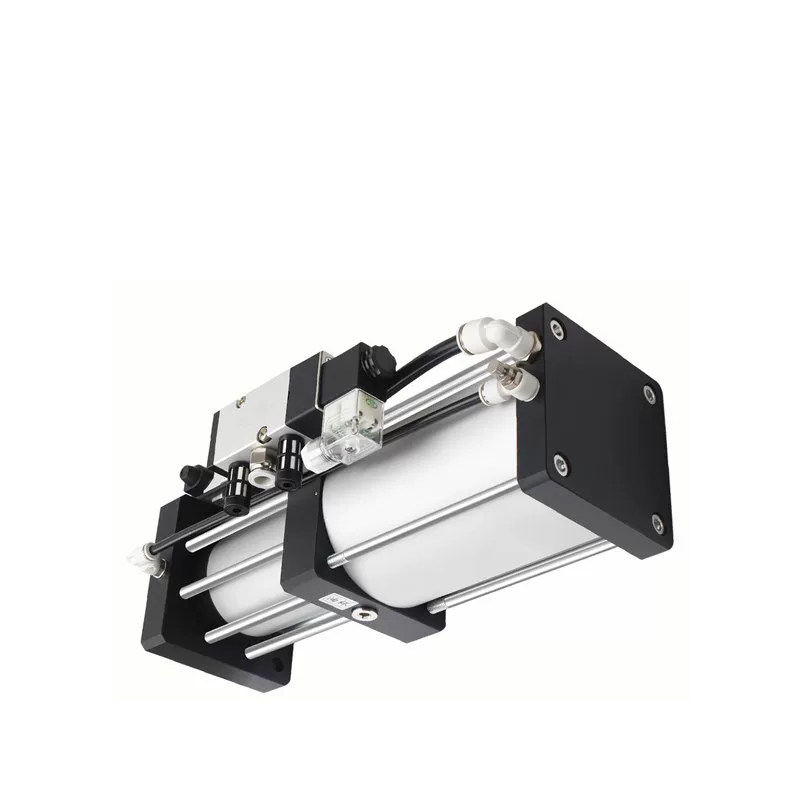

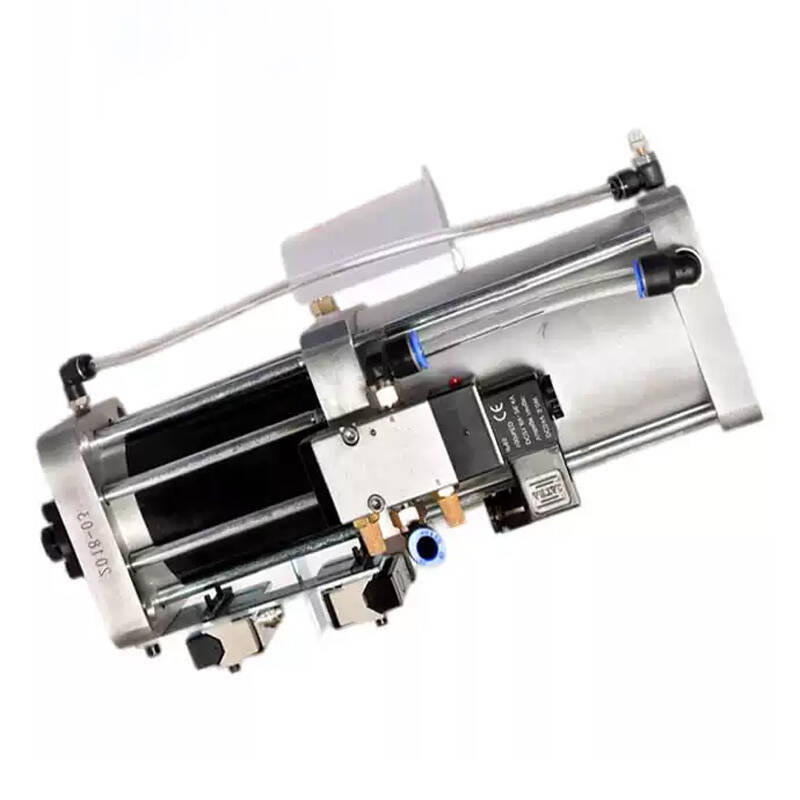

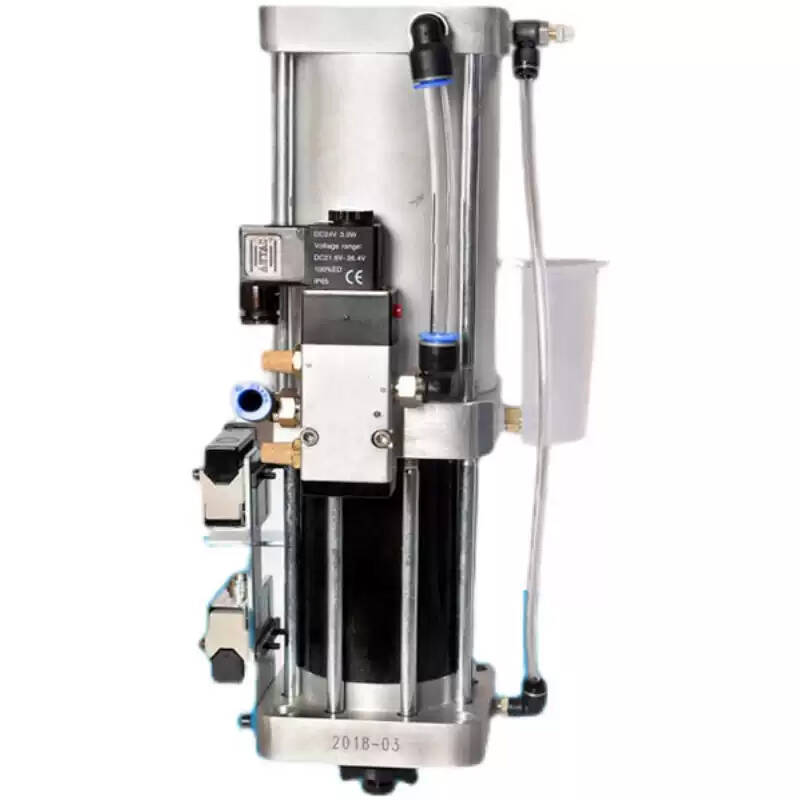

ZYG Series Tool Change Cylinder

  • Professional ZYG series tool change cylinder
  • High-force ATC spindle unclamping actuator
  • Integrated buffering to prevent spindle bearing damage
  • Compatible with BT30, BT40, and BT50 spindle tapers
  • Rapid response time for high-speed tool changes
  • Durable hard-anodized aluminum alloy body
  • Precision-engineered for millions of cycles
  • Stable pneumatic performance under high frequency
  • Integrated sensor slots for position feedback
  • Ideal for VMC and HMC machining centers.

ZYG Series: The Heart of High-Speed CNC Tool Changing


The ZYG series tool change cylinder is a critical pneumatic actuator designed specifically for Automatic Tool Changer (ATC) systems in CNC machining centers. Its primary function is to provide the high-axial force required to release the tool holder from the spindle taper (unclamping). Engineered for speed, precision, and durability, the ZYG series ensures seamless tool transitions in high-productivity environments.


Key Technical Features & Engineering Highlights

  • High-Force Unclamping: Utilizes a multi-stage or high-pressure pneumatic design to generate the massive force needed to overcome spindle spring tension, ensuring reliable release of BT30, BT40, and BT50 tools.

  • Integrated Buffer Technology: Features a built-in "anti-jump" buffering mechanism. This prevents the spindle from axial jumping during the tool release process, effectively protecting high-precision spindle bearings from impact damage.

  • Rapid Response & Cycle Time: Optimized internal air passages allow for lightning-fast inflation and exhaust, minimizing non-cutting time during tool change cycles.

  • Robust & Stable Construction: Built with a hard-anodized aluminum alloy cylinder body and high-strength seals to withstand millions of tool change cycles in harsh machining conditions.

  • Status Monitoring: Equipped with slots for proximity sensors to provide real-time feedback for "Tool Unclamped" and "Piston Retracted" positions, ensuring system safety.



Technical Specifications Overview

FeatureDetails
Compatible SpindleBT30, BT40, BT50
Unclamping Force800kgf to 4500kgf (Model dependent)
Acting TypeDouble Acting
Operating Pressure0.5 ~ 0.7 MPa (72 ~ 101 psi)
Buffer TypeHydraulic / Pneumatic Buffer
Cycle Life> 1,000,000 Cycles

Common Model Examples

  • ZYG-800kg: Optimized for BT30 high-speed spindles.

  • ZYG-3000kg: The standard choice for BT40 machining centers.

  • ZYG-4500kg: Heavy-duty version for BT50 large-scale spindles.

Primary Industrial Applications

The ZYG tool change cylinder is an essential component for:

  • Vertical Machining Centers (VMC): High-speed tool carousel operation.

  • Horizontal Machining Centers (HMC): Reliable tool exchange for large workpieces.

  • CNC Gantry Milling Machines: Heavy-duty tool clamping/unclamping.

  • CNC Drilling & Tapping Centers: Ultra-fast tool change requirements.
