Pneumatic Cylinder Rod End Joints
- High-Strength Carbon Steel Construction
- Precision Machined Y-Type Clevis
- Compact I-Type Eye Joint
- Wear-Resistant Nickel Plating
- Universal Thread Compatibility
- Lateral Stress Mitigation
- Smooth Pivot Motion
- Industrial Automation Grade
- Heavy-Duty Force Transfer
- Easy Tool-Free Pin Installation
- Corrosion-Proof Finish
- Extended Actuator Service Life
- Secure Mechanical Interface
- Reliable Load Alignment Support System Alignment Support Reliability Support for Solenoid Valve Systems
- Precise Alignment Hardware
Product Overview
In advanced pneumatic systems controlled by solenoid valves, the interface between the air cylinder and the mechanical load is critical. Pneumatic Cylinder Rod End Joints serve as the vital link that translates linear pneumatic force into controlled mechanical motion. Our high-precision joints are engineered to provide a secure, low-friction connection that protects the piston rod from lateral stress and misalignment.
Constructed from heavy-duty carbon steel or forged iron, these connectors undergo rigorous surface treatments, such as nickel plating or galvanization, to ensure maximum wear resistance and anti-corrosion properties. Whether your application requires a pivoting clevis motion or a simplified straight-line connection, our range of rod end hardware provides the structural integrity needed for millions of trouble-free cycles.

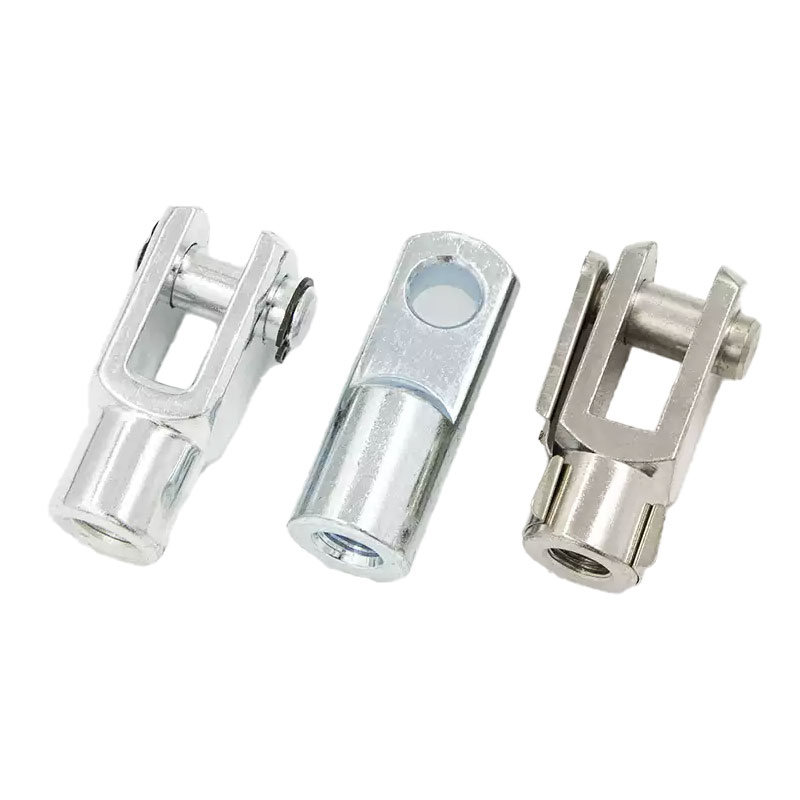

Featured Connector Types

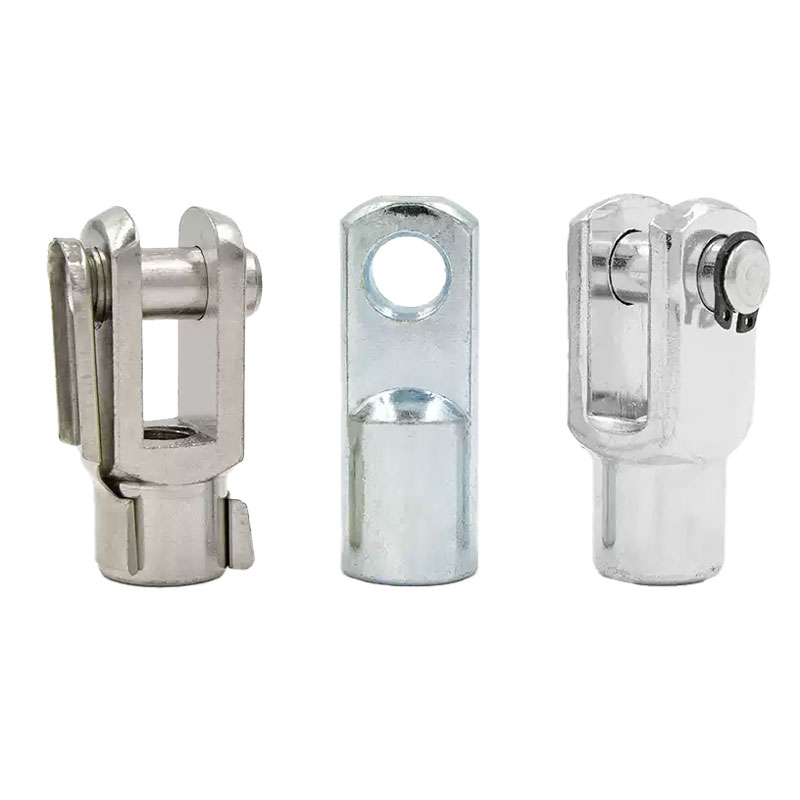

1. Y-Type Rod End Joint (Clevis Joint)
The Y-Joint (Y型接头), often referred to as a "Clevis Joint," features a double-shear fork design. It is the preferred choice for applications requiring a hinge-like motion.
Design: Consists of a U-shaped fork that straddles the load attachment point, secured by a high-tensile steel pin and retaining clips.
Stability: The dual-prong design provides superior stability against side-loading, ensuring that the force remains centered on the piston rod.
Applications: Ideal for heavy-duty tilting mechanisms, gates, and complex robotic arms where pivoting is required.

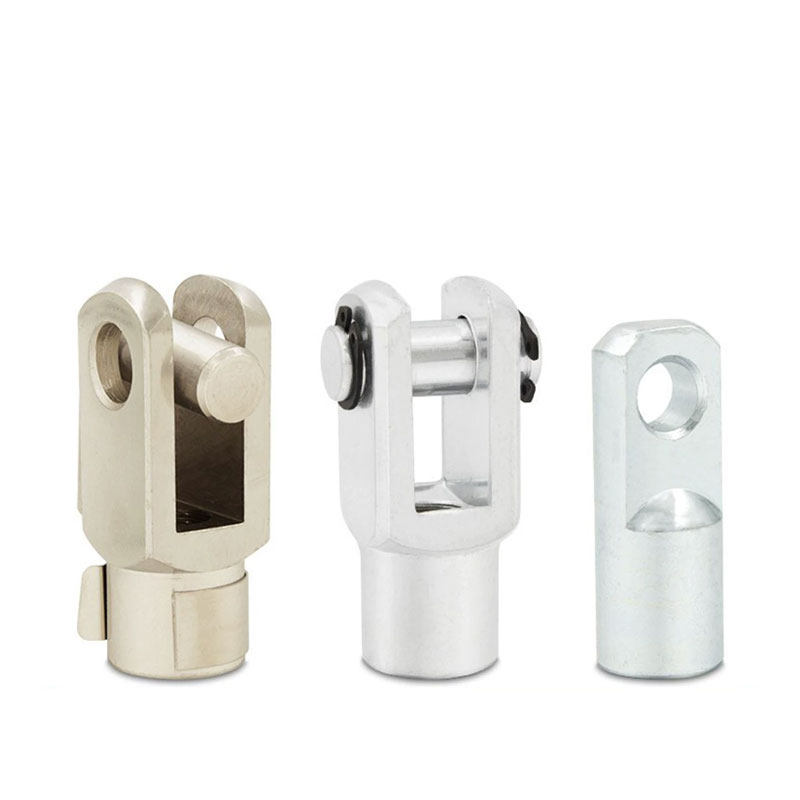

2. I-Type Rod End Joint (Eye Joint)
The I-Joint (I型接头), or "Eye Joint," offers a streamlined, single-point connection.
Design: Features a single solid eyelet with a precision-machined bore. This compact design is perfect for installations where space is at a premium.
Simplicity: It simplifies the mechanical interface by allowing a single pin to pass through the eyelet and the mounting bracket.
Applications: Best suited for straightforward pivot applications, linkage systems, and lightweight automation where a compact footprint is prioritized.
Key Performance Features
Precision Threading: Available in both standard and fine thread pitches to match all industrial cylinder rod specifications, ensuring a tight, non-slip fit.
Lateral Stress Reduction: By allowing for angular pivot motion, these joints prevent the piston rod from bending or scoring the internal cylinder seals, significantly extending the life of the actuator.
Corrosion Protection: Advanced surface coatings protect the metal from industrial lubricants, moisture, and chemical exposure commonly found in factory environments.
High Load Capacity: Engineered to handle the full rated thrust and pull force of large-bore pneumatic cylinders without deformation.
